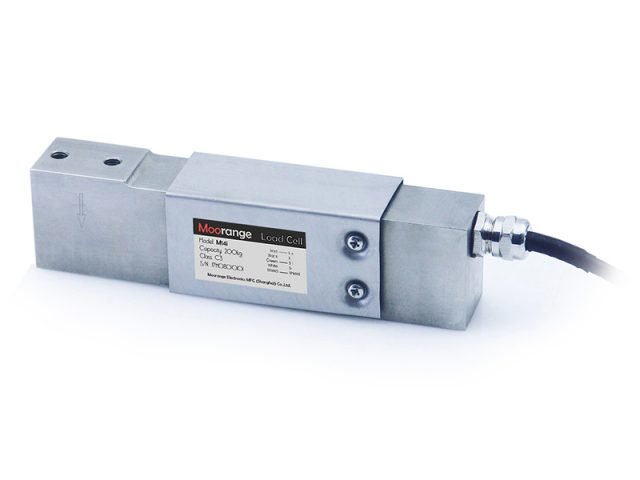

M14i S.S Waterproof Single Point Load Cell
A stainless steel waterproof single point load cell, compact design, a good weighing sensor for the bench scale, dynamic weighing, etc.
M14i made of 17-4Ph stainless steel
OIML and NTEP approved
Big capacity up to 200Kg
M14 with IP65 protection
M14i with IP67 protection
Recommended platforms:
from 250*250mm to 400*400mm
default of 3m Cable dia 5mm
longer cable customized
| Part No. | 120015 | 120016 | 120017 | 120018 | 120019 | 120020 | 120021 |
| M14 | 10kg | 15kg | 20kg | 30kg | 50kg | 100kg | 150kg |
| Part No. | 120022 | 120023 | 120024 | 120025 | 120026 | 120027 | 120028 |
| M14i | 15kg | 20kg | 30kg | 50kg | 100kg | 150kg | 200kg |
| Class | C3 | ||||||
| IP | M14 – IP65 | M14i – IP67 | ||||||
Capacity
5-100Kg | 15-200kg
Sensitivity
2.0 ± 0.2mV/V
Accuracy
C3
Creep (30 Min)
0.02%FS
Zero Output
± 2% Emax
TE* Zero
0.017%FS/10℃
TE* Sensitivity
0.014%FS/10℃
Input Resistance
409 ± 6Ω
Output Resistance
350 ± 3Ω
Insultation Resistance
≥5000mΩ(50VDC)
Opearting Tem Range
-35…65℃
Non-linearity
± 0.017% Emax.
Repeat
± 0.01% Emax.
Overload Limitation
150% F.S.
Recommended Excitation
5-12VDC
Protection
IP67
