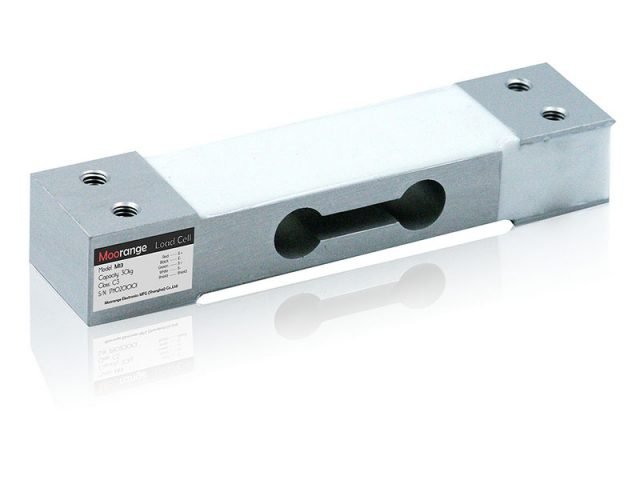

M13 M13M Single Point Load Cell
The most popular single point load cell, a perfect load cell for the table scales, counting scales, price computing scales and other retail scales, also a good load cell for the unattended retail weighing solutions.
OIML approved.
Aluminum alloy material.
Big capacity up to 50Kg.
Anodized load cell body.
Recommended platforms: from 200*200mm to 300*300mm.
default of 0.4m. Cable dia 3.9mm.
longer cable customized.
| Part No. | 120001 | 120002 | 120003 | 120004 | 120005 | 120006 | 120007 |
| M13 | 5kg | 10kg | 20kg | 30kg | 35kg | 40kg | 50kg |
| Part No. | 120008 | 120009 | 120010 | 120011 | 120012 | 120013 | 120014 |
| M13M | 5kg | 10kg | 20kg | 30kg | 35kg | 40kg | 50kg |
| Class | C3 | ||||||
| IP | IP65 | ||||||
Capacity
5 |10 | 20 | 40 | 50Kg
Sensitivity
2.0 ± 0.2mV/V
Accuracy
C3
Creep (10 Min)
0.015%FS
Zero Output
± 2% Emax
TE* Zero
0.1%FS/10℃
TE* Sensitivity
0.02%FS/10℃
Input Resistance
395 ± 10Ω
Output Resistance
350 ± 5Ω
Insultation Resistance
≥5000mΩ(50V)
Opearting Tem Range
-10…40℃
Non-linearity
± 0.02% Emax.
Repeat
± 0.01% Emax.
Overload Limitation
150% F.S.
Recommended Excitation
5-12VDC
Protection
IP65
