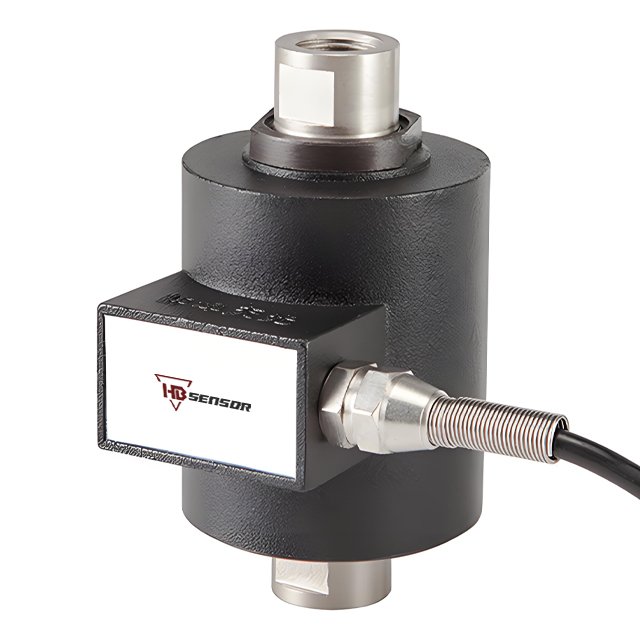

HBTLSF302A Plate-Ring Type Tension Force Sensor for Measurement and Weighing Control
Key Features:
Small Capacity: Accurately measures weights up to 0.05 to 200 kN,
Aluminum alloy or stainless steel construction: We can tailor raw materials to meet customer needs.
Protection Rating: The load cell is designed to meet an IP65/IP66 protection rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Usage & Applications:
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing
HBTLSF302A Customized Options:
| Parameter Options/Description | |
|---|---|
| Rated Load | 1-20t Higher ranges customizable |
| Sensitivity | Default 2.0mV/V, adjustable |
| Cable Length | Standard 2m, customizable length |
| Cable Material | PVC, PUR, High-temp, Waterproof, etc. |
| Connection | Integrated cable/Quick connector |
| IP Rating | IP65/IP66 (Dust/Waterproof customization) |
| Material | Alloy Steel/Stainless Steel |
| Thread Type | Metric/Imperial thread |
| Temperature | -20℃~+65℃ |
HBTLSF302A Typical Custom Requests:
Corrosion-resistant
Output Signal: Analog output: 4-20mA/0-10V, Digital output: RS485/CAN bus
Dimensional adjustments
Custom threaded holes
Provide detailed requirements for customization: If you need to customize the S Beam Load Sensor, please provide specific parameters or application scenarios.
Let me know if you need further details: If you need further customization details, please let me know!

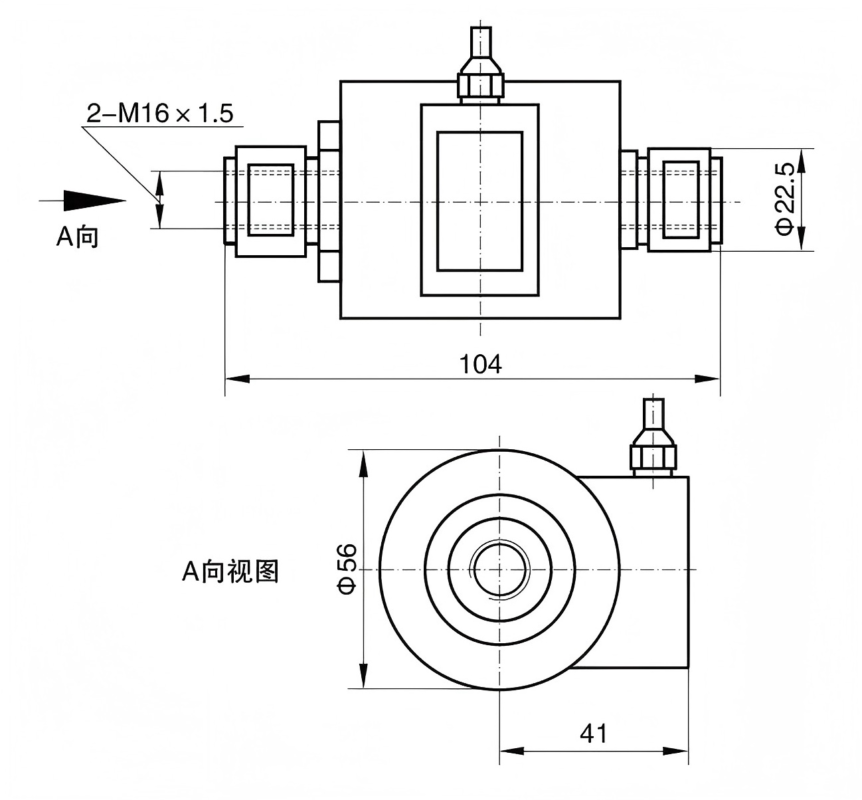

Dimension Size:
HBTLSF302A S Type Beam Tension Sensor Specifications:
| Parameter Value/Range/Description | |
|---|---|
| Rated Load (kN) | 1.5, 2, 3, 5, 10 (kN) |
| Comprehensive Precision | 0.02～0.05%F·S |
| Sensitivity | 2.0 mV/V |
| Creep | ±0.05 %F·S/30min |
| Zero Output | ±1 %F·S |
| Temperature Effect On Zero | ±0.02 %F·S/10℃ |
| Temperature Effect On Output | ±0.02 %F·S/10℃ |
| Operating Temperature Range | -20℃～+65℃ |
| Input Resistance | 680±10 Ω |
| Output Resistance | 680±5 Ω |
| Insulation Resistance | >5000 MΩ |
| Safe Load Limit | 150% F·S |
| Bridge Voltage (Recommended) | 10V DC |
| Material | Alloy Steel |
| Load Cell Wiring | |
| Input+ | Red |
| Input- | Black |
| Output+ | Green |
| Output- | White |
