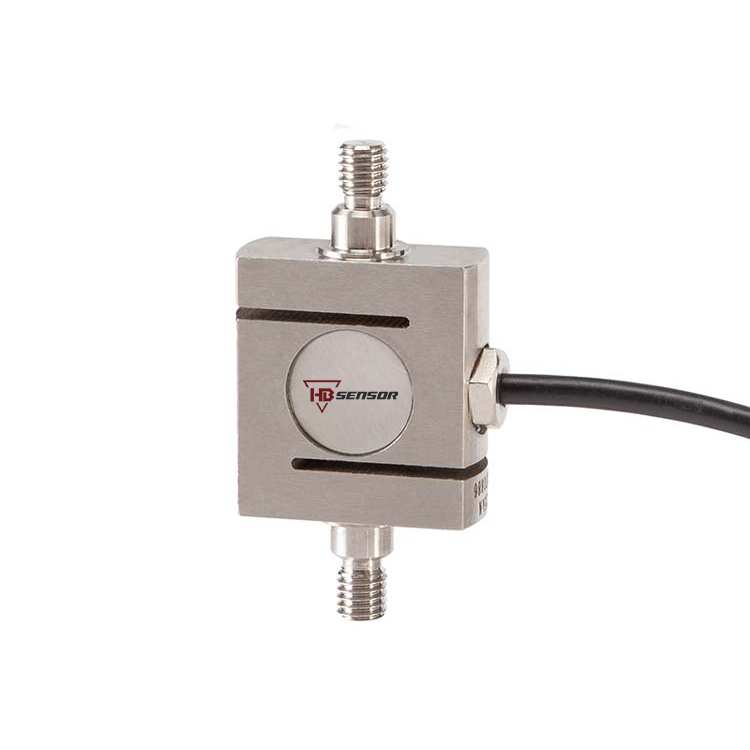

HBTLSF3013B Alloy Steel S Type Tension Load Cell Force Sensor For Belt Scales
Key Features:
Small Capacity: Accurately measures weights up to 50-500kg
Aluminum alloy or stainless steel construction: We can tailor raw materials to meet customer needs.
IP66/IP67 Protection Rating: The load cell is designed with an IP66/IP67 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Usage & Applications:
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing

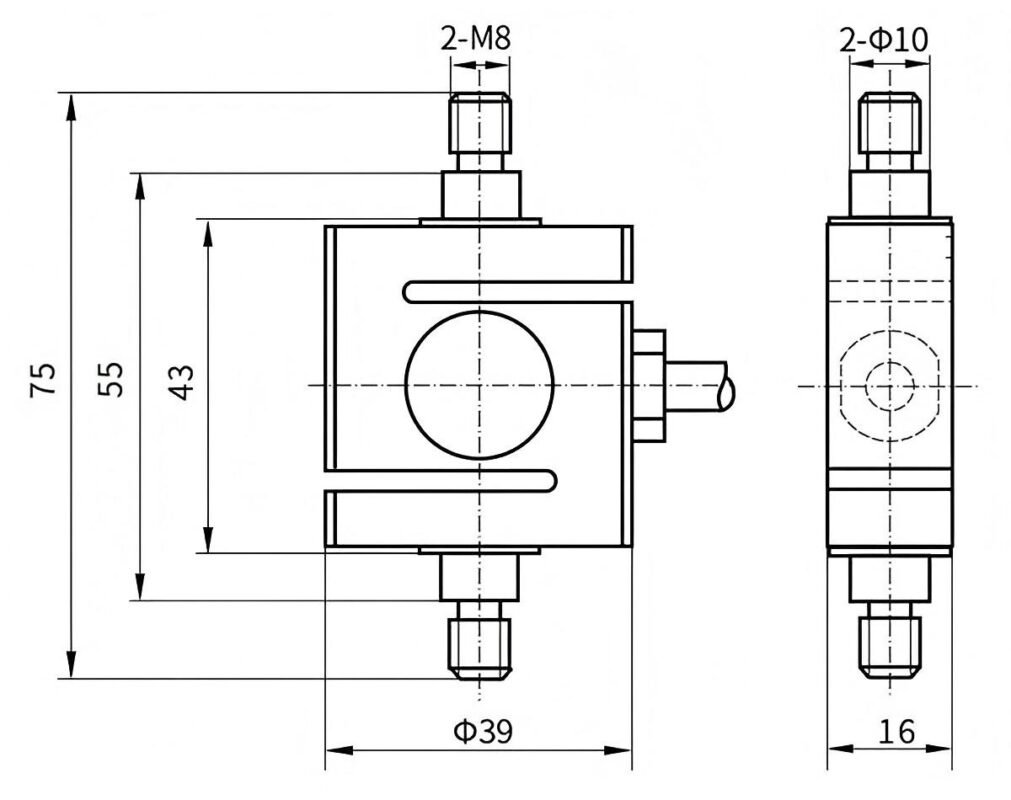

Dimension Size:
Specifications:
| Rated Capacities | Temperature Effect On Output |
| 50-500kg | 0.002 %R.O./℃ |
| Rated Output | Temperature Effect On Zero |
| 2.0 ±0.003 /v | 0.003 %R.O./℃ |
| Zero Balance | Input Impedance |
| ±1.0 mV/V | 380±10 Ω |
| Non-linearity | Output Impedance |
| 0.02% R.O. | 350±3Ω |
| Hysteresis | Insulation Impedance |
| 0.02% R.O. | ≥5000 MΩ/(100VDC) |
| Repeatability | Recommended Excitation |
| 0.02% R.O. | 9~12 VDC |
| 30 mins, Creep | Maximum Excitation |
| ±0.023%FS/30 | 10 VDC |
| 30 Return | OperatingTemperatureRange |
| 0.02% R.O. | -20~65 ℃ |
| Safe Overload | Construction |
| 150% R.O. | Aluminum Alloy & Stainless Steel |
| Ultimate Overload | Protection Class |
| 200% R.O. | IP67 / IP68 |
