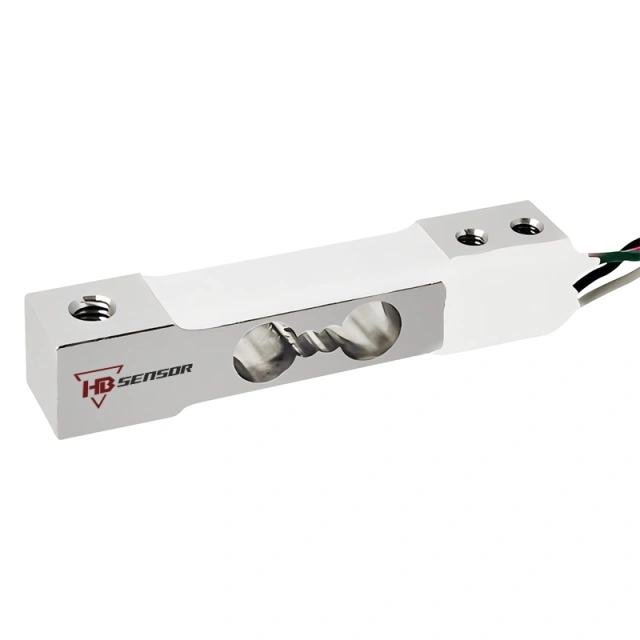

HBTLS608ZA4 Flat Types Small Load Cell Sensor 5kg
Key Features:
Low Capacity: Accurately measures weights up to15kg-80kg
Compact Size: Dimensions of approximately 52mm in length, suitable for integration in space-constrained applications.
Aluminum alloy construction: Raw materials can be customized according to customer requirements
IP65 Protection Rating: The load cell is designed with an IP65 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Usage & Applications:
Weighing Scales: Used in portable or compact digital scales for precise weight measurement.
Commercial Scales: Commonly used in retail and supermarket electronic scales to help merchants weigh products accurately.
Industrial Weighing: Great for warehouse, logistics, and production line weighing systems to make sure goods and materials are measured accurately.
Medical Devices: Comes in handy for medical equipment that needs weight monitoring, like patient scales or when mixing medicines.
Food Industry: Helps ensure food products weigh what they’re supposed to during processing and packaging.
Laboratory Equipment: Perfect for research settings where you need super accurate measurements of different substances.
Intelligent Smart Products: Coffee vending machine , A variety of different miniature VENDING machines.

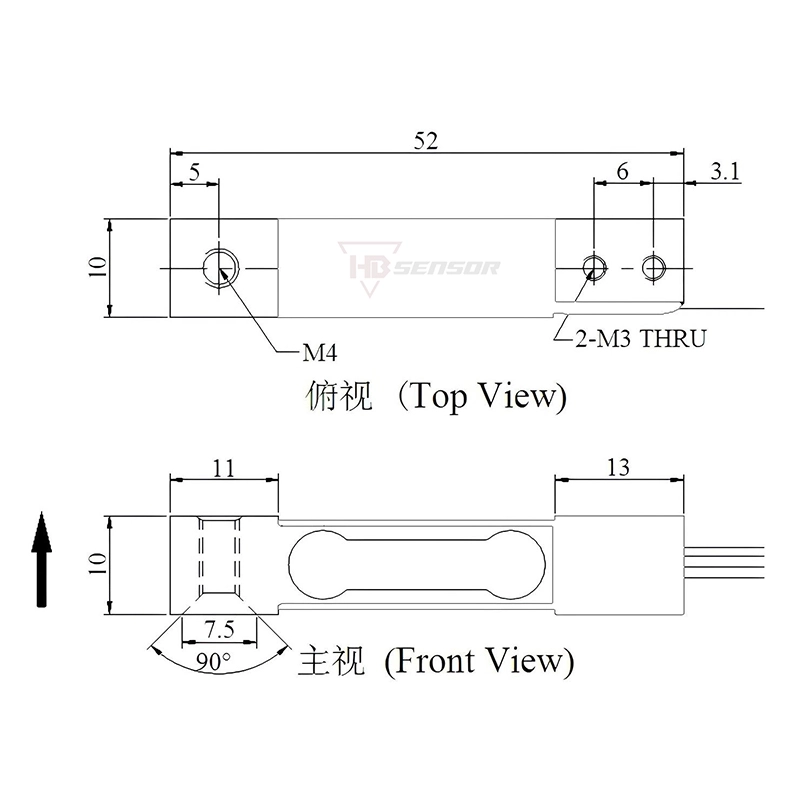

Dimension Size:52x10x10mm
Specifications
|
Sensor range
|
1-5kg
|
|
Accuracy class
|
C2/C3
|
|
Comprehensive error
|
0.03% FS
|
|
Output sensitivity
|
1.4±0.1 mV/V(3kg ～ 5kg) ; 1.0±0.1 mV/V(1kg)
|
|
creep
|
0.03% FS/30min
|
|
Zero output
|
±5% FS
|
|
Input impedance
|
405±10Ω
|
|
Output impedance
|
350±3Ω
|
|
insulation resistance
|
≥5000 MΩ(100VDC)
|
|
Influence of zero temperature
|
±0.03% FS/10℃
|
|
Sensitivity temperature effect
|
±0.03% FS/10℃
|
|
Temperature compensation range
|
-10℃ ~ +40 ℃
|
|
Operating temperature range
|
-20℃ ~ +60 ℃
|
|
Excitation voltage
|
9VDC ~ 12VDC
|
|
Safe overload range
|
120%
|
|
Limit overload range
|
150%
|
|
Recommended table size
|
150*200mm
|
|
Material Science
|
铝合金/Aluminum Alloy
|
|
Protection level
|
IP65
|
|
External dimension of sensor
|
52x10x10mm
|
|
Mounting hole size
|
2-M3
|
|
Location of mounting hole
|
Y7.5
|
