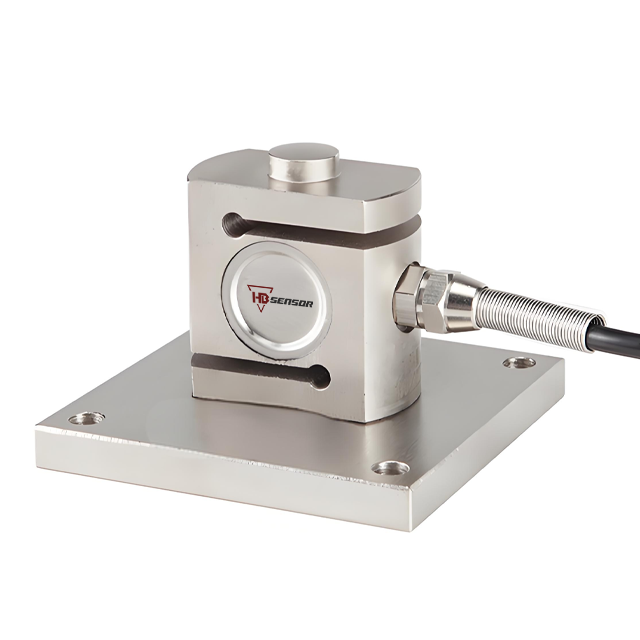

Haibo Sensor HBTLS3001B Types Load Cell Compression Force Sensor For Electronic Belt Scales and Packaging Scales
Key Features:
Material : 304 or 316 stainless steel for corrosion resistance , ideal for harsh environments.
Diaphragm Design : High side-load rejection , ensuring accurate axial force measurement.
Capacity Range : From a few Newtons (N) up to several kilonewtons (kN).
Output Options: Analog (mV/V, 4-20mA, 0-10V), Digital (RS485, CAN, I²C, etc.)
Protection Rating : Typically IP65/IP67 (dustproof & waterproof).
Temperature Compensation : Minimizes drift due to thermal variations
Usage & Applications:
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing

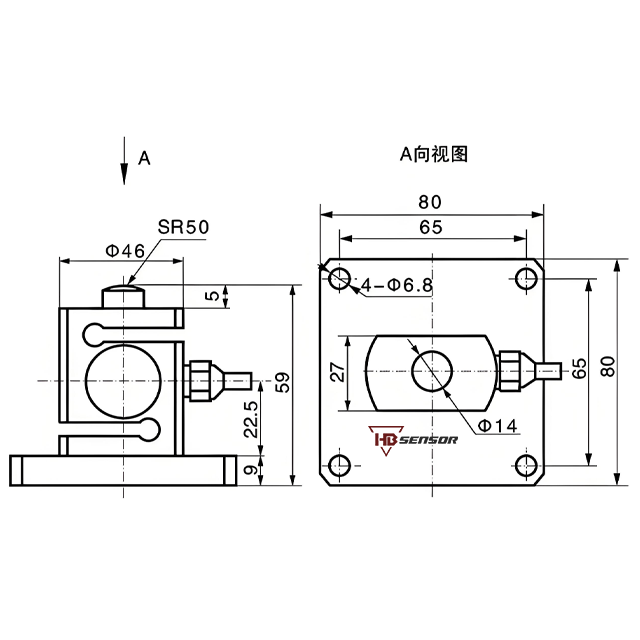

Dimension Size:
Specifications:
| Parameter Value/Description | |
|---|---|
| Rated Load | 1, 1.5, 3 (kN) |
| Comprehensive Precision | 0.05% F·S |
| Sensitivity | 2.0 mV/V |
| Creep | ±0.05 %F·S/30min |
| Zero Output | ±1 %F·S |
| Temperature Effect On Zero | ±0.05 %F·S/10℃ |
| Temperature Effect On Output | ±0.05 %F·S/10℃ |
| Operating Temperature Range | -20℃～+65℃ |
| Input Resistance | 680±10 Ω |
| Output Resistance | 650±3 Ω |
| Insulation Resistance | >5000 MΩ |
| Safe Load Limit | 150% F·S |
| Bridge Voltage | Recommended 10V DC |
| Material | Alloy Steel |
| Load Cell Mode of Connection | Input+: RedInput-: BlackOutput+: GreenOutput-: White |
