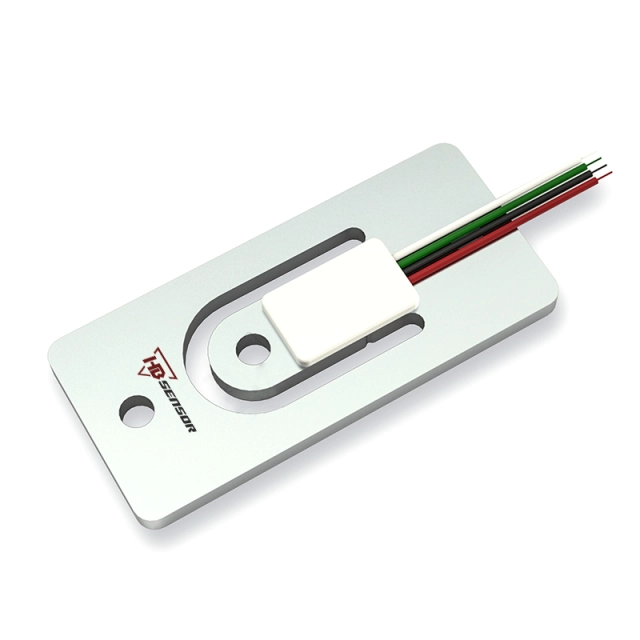

Haibo Sensor Flat Micro Strain Gage Full Bridge Load Cell For Smart Luggage Scales
Key Features:
Compact size
Durability
Wide measurement range
Low power consumption
Manganese steel
Half Bridge load cells
IP65
Easy installation
Usage & Applications:
Body Scales
Kitchen Scales
Smart Micro Weighing Machine
Other microelectronic weighing systems.
Auto Pet Feeder
Sport Device

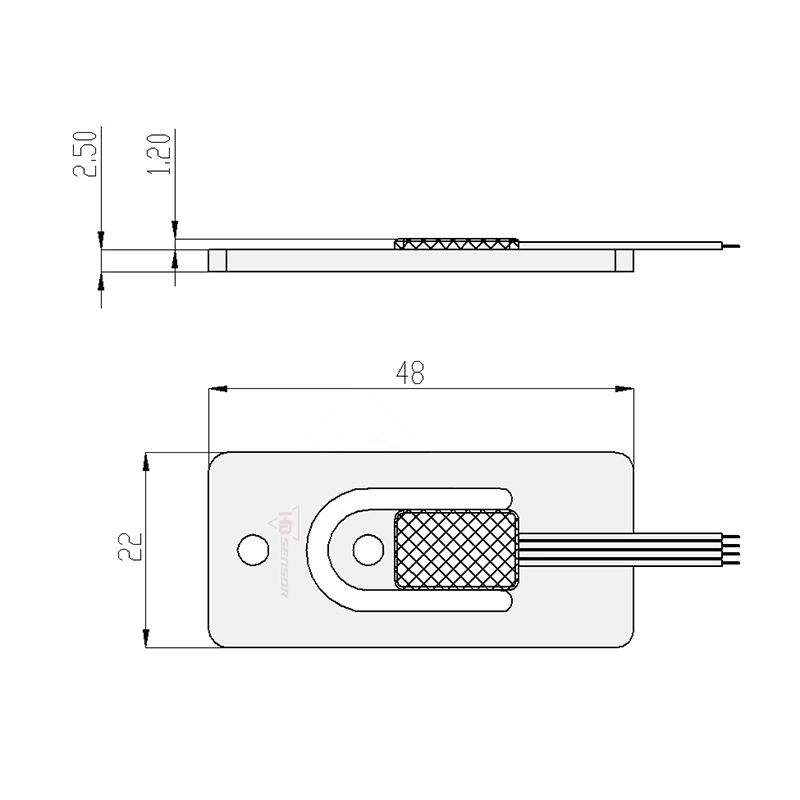

Dimension Size:
Specifications:
| Rated Capacities | Temperature Effect On Output |
| 10-50kg | R.O./10°C |
| Rated Output | Temperature Effect On Zero |
| 1.0±0.15 mV/V | ±0.1 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.5 mV/V | 1000±10Ω |
| Non-linearity | Output Impedance |
| 0.05% FS. | 1000±10Ω |
| Hysteresis | Insulation Impedance |
| 0.05% FS. | ≥2000 MΩ |
| Repeatability | Recommended Excitation |
| 0.05% FS | 3VDC ~ 10VDC |
| 3 mins, Creep | Maximum Excitation |
| 0.1% FS/3 MIN | 5-10VDC |
| 30 Return | OperatingTemperatureRange |
| 0.02% R.O. | -10~40 ℃ |
| Safe Overload | Construction |
| 120% R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150% R.O. | IP65 |
| Cable: RED (+) BLACK(-) GREEN (+) WHITE(-) | 450MM |
