GML-M420-5t, GML-M420-7.5t, GML-M420-10t, GML-M420-15t, GML-M420-22.5t, GML-M420-25t, GML-M420-30t, GML-M420-40t, GML-M420-50t, GML-M420-100t

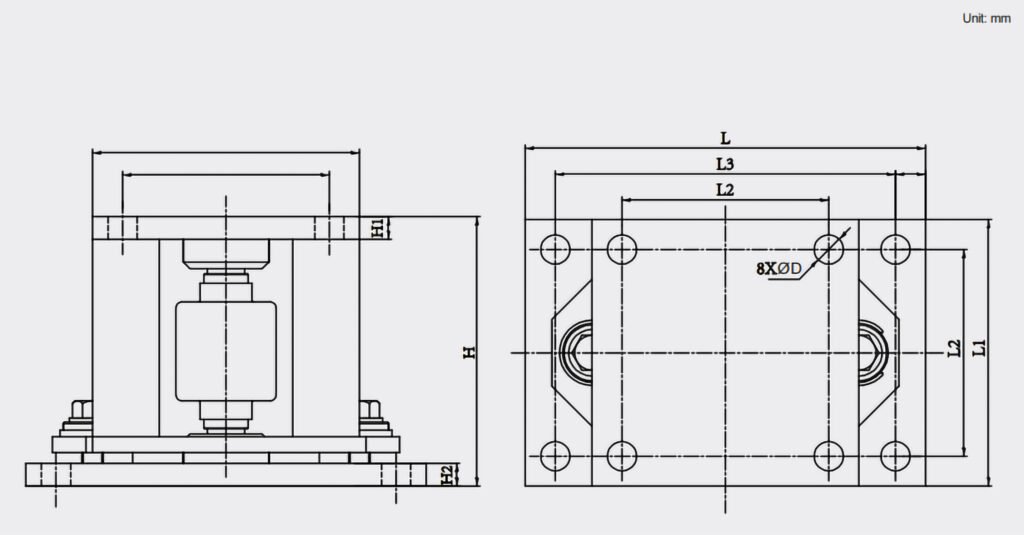

| Capacity | D | H | H1 | H2 | L | L1 | L2 | L3 | L4 |
| 7.5~22.5t | 22 | 152 | 12 | 17 | 300 | 200 | 155 | 255 | 22.5 |
| 25~70t | 22 | 200 | 17 | 17 | 300 | 200 | 155 | 255 | 22.5 |
| 100t | 32 | 263 | 30 | 33 | 440 | 300 | 235 | 375 | 32.5 |
Features
용량：1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel, stainless steel optional.
타입 : Single-Ended Beam
보호등급 : IP68
용량：15t
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
Features
용량：10, 30, 50kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67
Features
용량：300, 500, 750, 1000,2000kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
Features
용량：50, 100, 300kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67
용량：15t
재질 : Alcy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Features
용량：11, 22, 60, 100kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP68/IP69K
Features
용량：20, 30, 50, 100, 300, 500kg
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68, IP69K
Features
용량：100, 150, 200, 300, 500, 750kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
용량：0.5, 1, 2, 3, 5t
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
