Models

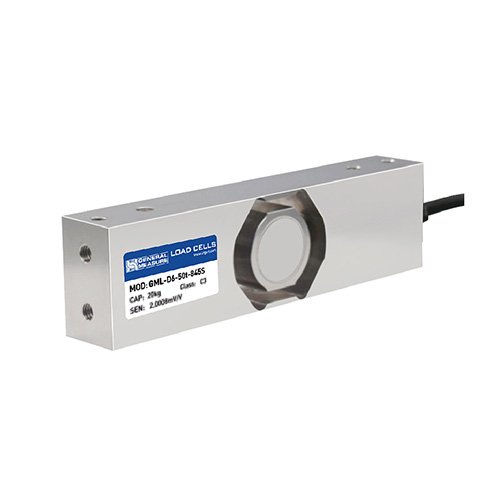

GML-D6 845-10kg, GML-D6 845-20kg, GML-D6 845-50kg, GML-D6 845-100kg
Features
- 용량：10~100kg
- 재질 : stainless steel
- 타입 : Singie Point
- 보호등급 : IP67
- 적용분야 : 산업용 플랫폼 저울, 벨트 스케일, 포장 기계 등 소형 중량 측정이 필요한 자동화 설비
Dimensions
Specifications
Capacity: 100–1,000 kg
Material: Alloy steel
Type: S-Type
Protection Rating: IP67
Suitable for crane scales, hopper scales, transmitters, and other electronic weighing equipment.
용량：10, 25, 30, 50, 75, 100, 150, 250klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Features
용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67/IP68
Capacity: 100–500 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for price computing scales, bench scales, and other electronic weighing devices.
Capacity: 60–200 kg
Material: Stainless steel
Type: Single Point
Protection Rating: IP68 / IP69K
Suitable for stainless steel waterproof scales and process weighing control in the chemical, food, and pharmaceutical industries.
용량：15t
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
Features
용량：1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel, stainless steel optional.
타입 : Single-Ended Beam
보호등급 : IP68
용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t
재질 : Alloy steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/lP68
Features
용량：500, 1000,2000kg
재질 : Alloy steel, stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67, IP68
Features
용량：60, 100, 200, 300kg
재질 : Aluminum
타입 :Single Point
보호등급 : IP66
