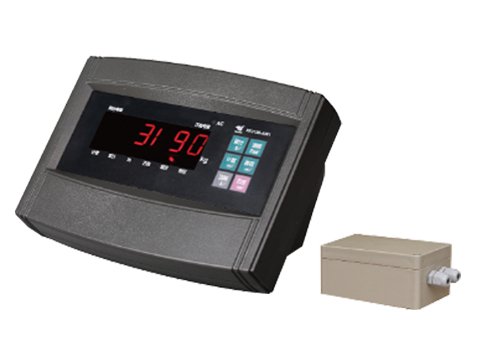

GSI411 Wireless platform scale weighing indicator
Smart Wireless Transmission
◆Automatic frequency hopping, :which can automatically jump to the frequency band with large interference, and can be shared with the same frequency band such as WIFI, Bluetooth, etc.
◆ 30 independent communication channels can be set. In the same place, there are 30 wireless systems can be used in the same time at most.
Ultra-low power design:
- The instrument can work continuously for more than 40 hours on one charge.
- Analog wireless connection box can work continuously for more than 120 hours on one charge,
standby time is longer than 2 months.
3. It can be configured as animal weighing instrument, which has the characteristics of fast response, fast refresh and fast return to zero.
4. Both the meter itself and the wireless junction box have undervoltage protection to prevent the battery from over-discharging.
5. has a cumulative, count, kg pounds, animal scales, serial communication and other functions
6. Optional Bluetooth 2.0 output.
Technical Data:
Wireless communication:
- Band: 2.4GHz~2.525GHz.
- Distance: no obstructed transmission distance 20 meters (typical) Analog wireless junction box.
- Input signal range: -16~18mV.
- Number of connected sensors: 1~4 350Ω sensors.
- Verification index number: 3000.
- Power supply: 6V/4AH battery
- standby time: more than 3 months.
- Continuous working time: 160 hours (connecting a 350Ω sensor) meter.
- Display: 6-digit LED digital tube, 13 status indicators.
- Interface: RS232C serial port, baud rate 600 ~ 19200, can be connected to specify the micro-hit.
11. AC power: AC 187~242V 49~51Hz.
12. DC power supply: built-in battery DC 6V/4AH.
13. Battery life: 40 hours.
