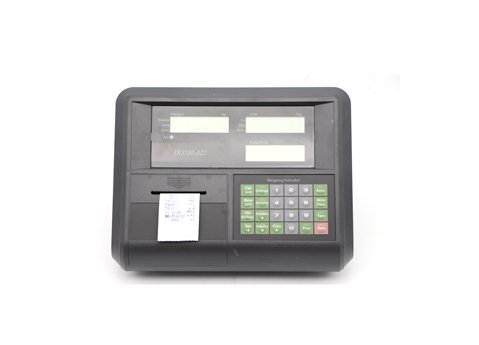

GSI406 weighing indicator
Standard Function
◆Standard price-computing function
◆Standard built-in stylus printer
◆Able to save and call 100 unit prices
◆Accumulation function, including accumulation display and accumulation clear, able to select to print details and accumulation note
◆Able to inquiry the saved records by pressing the buttons
◆Able to select items to print freely
◆Simply counting function, and able to price-computing by the quantity
◆Able to save, inquiry and print 1000 weighing records
◆Standard RS232 interface, and optional communication format
◆Optional high-low limits alarm function
◆Optional KG/LB one-key switch function
| Accuracy class | III |
| Max verified counts | 3000 |
| Input signal range | -16 – 18mV |
| AD conversion method | Σ-Δ |
| Load cell excitation | DC 5V |
| Load cell connection mode | 4 wires |
| Number of connection load cell | 1 – 4 pcs at 350Ω |
| Power supply | AC220V, 50Hz; DC built-in 6V/5AH rechargeable battery |
| Time for preheat | 15 minutes |
| Interface type | current loop |
| Baud rate | 600 |
| Transmission distance | <2000 meters |
| Printer | |
| Standard panel type mini printer | |
| Standard serial print interface, able to connect printer LQ-300K+, baud rate 9600 | |
| Transmission type | RS232 |
| Baud rate | 600/ 1200/ 2400/ 4800/ 9600 (optional) |
