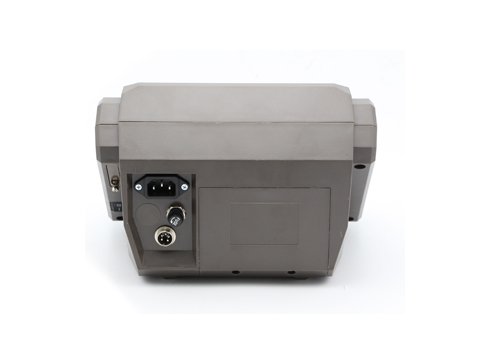

GSI405 weighing indicator
Standard Function
◆High precision A/D conversion with readability 1/30000
◆Call and display inner code to replace weight observing and analysis tolerance
◆Special digital filtering technology to strengthen anti-vibration ability
◆Able to set up zero-tracking range, zero(auto/manual) range
◆Able to set up digital filter intensity、range and stable time
◆With counting function (unit weight data save protection in case of power off)
◆Selectable backlight mode
◆AC/DC power supply, with built-in rechargeable 6V/4AH battery
◆Alarm for low battery and auto power off at low battery
◆Optional of RS232 interface with selectable baud rate and communication method
◆Optional of scoreboard interface sending by 20mA current loop
Nonstandard Function( Optional, please inform sales staff if need):
◆KG/LB switch function
◆Auto calculating average function ( For livestock scale)
◆Two fixed-value outputs function ( For low speed weighing)
| Max. A/D conversion bits | 20 |
| Input signal range | -10mV~15mV |
| Input sensitivity | ≥1 μV/e |
| Load cell excitation | DC 5V; I≤150mA |
| Max. connection number of load cell | 4 at 350 ohm |
| Load cell connection mode | 6 wire |
| Verified counts | 3000 |
| Max. external counts | 30000 |
| Max. internal resolution | 300000 |
| Division | 1/ 2/ 5/ 10/ 20/ 50 optional |
| Display GSI405A | 6 bits LCD, 6 status indications |

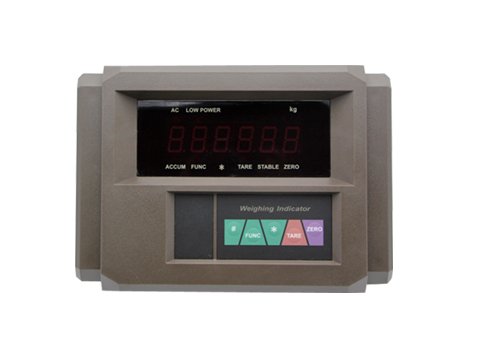

| Display GSI405B | 6 bits LED, 6 status indications |
| Display range | -2000~150000 (d=10) |
| Optional | Scoreboard interface serial sending signal by current loop with baud rate 600 |
| Transmission distance | Current loop ≤2000 meters |
| Interface type | RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method |
| Baud rate selectable | 1200/2400/4800/9600 |
| Transmission distance | RS232C≤30 meters |
| Power supply | AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery |
