GSB205 Livestock Animal Weighing scales Shear Beam Load Cell
Shear Beam Load Cells also called parallel beam load cell, are ideal for a wide range of applications such as platform scales or fixed suspended weigh systems, process weighing and low profile installations. Shear beams are used in industries which goods are produced or transformed.
Our product GSB205 Shear Beam Load Cells made of alloy steel or stainless steel, suitable for truck scale, electronic scale and other weighing devices. It has optional internal transmitter for 4-20mA or 0-5V output. All load cells can be supplied individually or combined with our instrumentation for a complete weigh system.
What is specifications of GSB205 Shear Beam Load cell?
| Rated load | 100 200 300 500 1000 2000 3000kg |
| Accuracy class | C3 |
| Rated output | 2.0±0.004mV/V |
| Comprehensive error | ≤±0.02%F.S |
| Creep | 0.02%F.S/30min |
| Zero balance | ±1.0%F.S |
| Temperature effect on sensitivity | 0.016%F.S/℃ |
| Temperature effect on zero | 0.002%F.S/℃ |
| Input resistance | 365±10Ω |
| Output resistance | 350±3Ω |
| Insulation resistance | ≥5000MΩ(50VDC) |
| Excitation voltage | 5~12VDC |
| Compensated temp.range | -10~+40℃ |
| Use temp.range | -35~+80℃ |
| Safe overload | 150% |
| Ultimate overload | 200% |
| Load cell material | Alloy steel |
| Defend grade | IP67 |
| Cable | Φ5.7mm*2m |

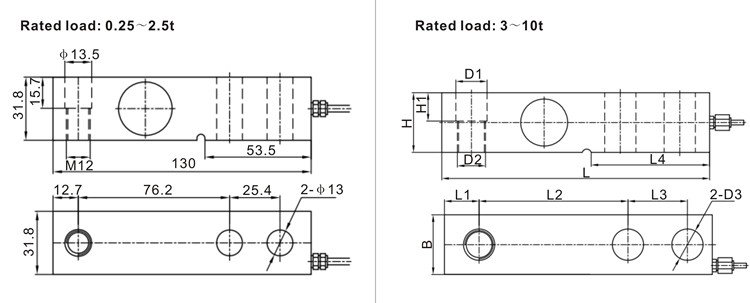

What is dimension of GSB205 Shear Beam Load cell?

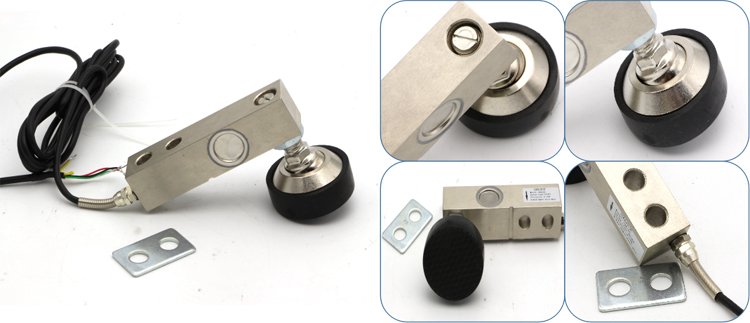

What is detail of GSB205 Shear Beam Load cell?
What is the application of GSB205 Shear Beam Load cell?
