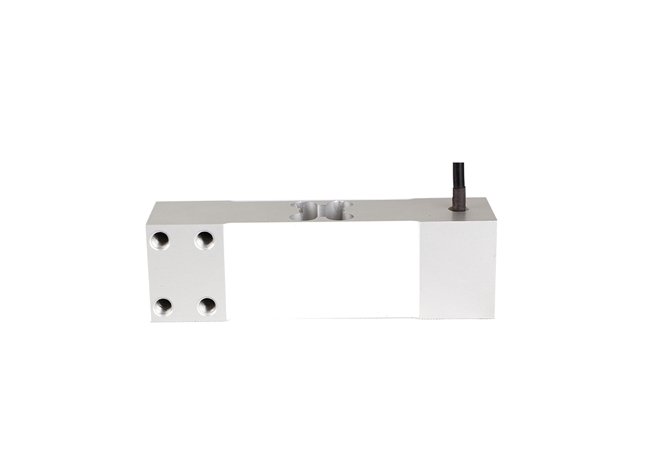

GPB149R Single point load cell
FEATURES
- Aluminum alloy,surface anodized and anticorrosion
- Recommend max platform: 400×500mm
- Suitable for electronic scale and other weighing equipment with small platform.
SPECIFICATION
| Rated Load | 100,200,300(kg) | ||
| Accuracy Class | C3 | Compensated Temp.Range | -10～+40℃ |
| Comprehensive Error | ±0.02%F.S | Operating Temp.Range | – 20～+60℃ |
| Rated Output | 2.0±0.15mV/V | Excitation,Recommended | 5～12VDC |
| Zero Balance | ±1.0%F.S | Excitation,Maximum | 3～15VDC |
| Linearity Error | ±0.02%F.S | Safe Overload | 120%F.S |
| Repeatability Error | ±0.02%F.S | Ultimate Overload | 150%F.S |
| Hysteresis Error | ±0.02%F.S | Insulation Resistance | ≥5000MΩ(50VDC) |
| Creep | ±0.02%F.S/30min | Cable | 4-Wire Shielded Cable |
| Input Resistance | 406±20Ω | Cable Length | Φ6mm×2m |
| Output Resistance | 350±5Ω | Ingress Protection | IP65 |
| Temp.Effect on Output | ±0.02%F.S/10℃ |

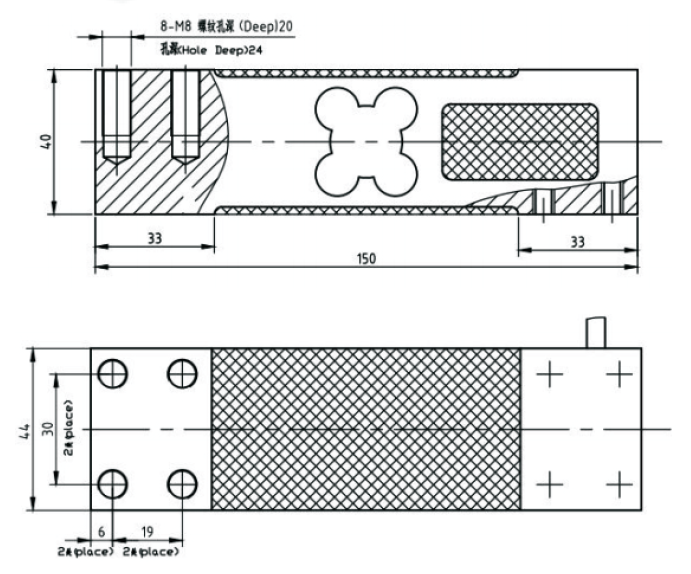

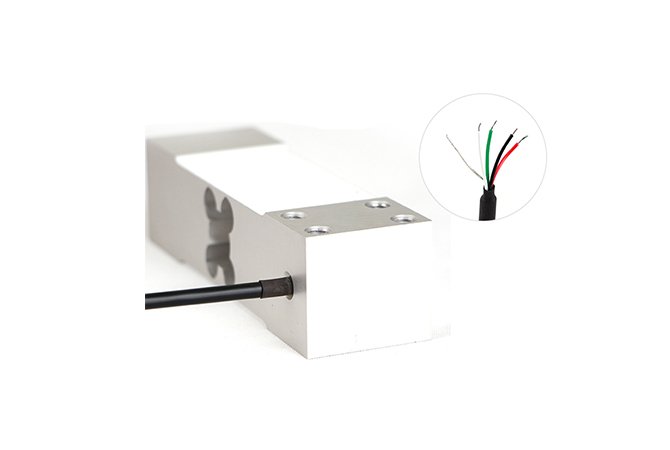

Wiring Definitions |
Exc+：Red Exc-：Black |
| Temp.Effect on Zero | ±0.02%F.S/10℃ | Sig+：Green Sig-：White | |
