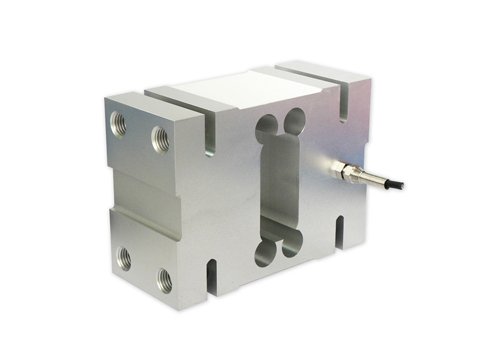

GPB142 large capacity single point load cell 3000kg
What is specification of GPB142 Load cell?
| Specifications: | |
| Range | 50~3000kg |
| Rated sensitive | 2.0±0.2 mV/V |
| Accuracy | C2 |
| Combined error | ±0.03 %FS |
| Creep | ±0.03%FS/30min |
| Zero balance | ±1.0%FS |
| Input resistance | 405±6 Ω |
| Output resistance | 350±3 Ω |
| Installation resistance | ≥5000MΩ(50Vdc) |
| Compensated temp. range | -10~+40°C |
| Operating temp. range | -30~+60°C |
| Temp. effect on zero | 0.02%FS/10°C |
| Temp. effect on span | 0.02%FS/10°C |
| Excitation(recommended) | 9~12Vdc |
| Recommended platform size | 600mm x 600mm |
| Safe overload | 120%FS |
| Ultimate overload | 150%FS |
| Cable specification | φ5mm,cable length:2m |

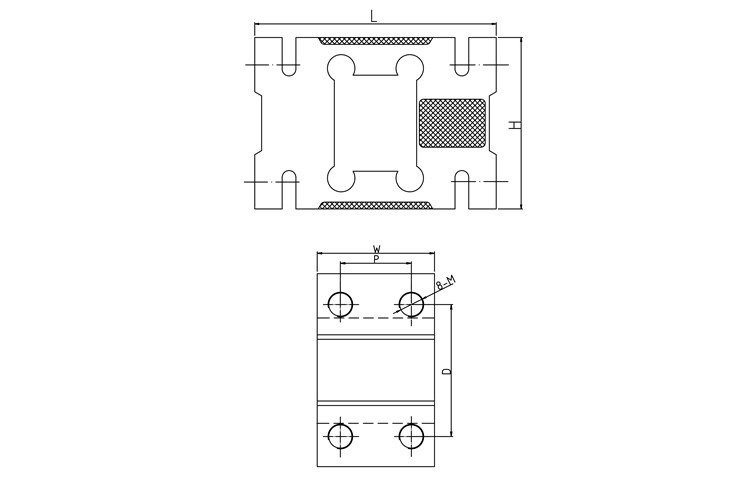

What is dimension of GPB142 Load cell?
