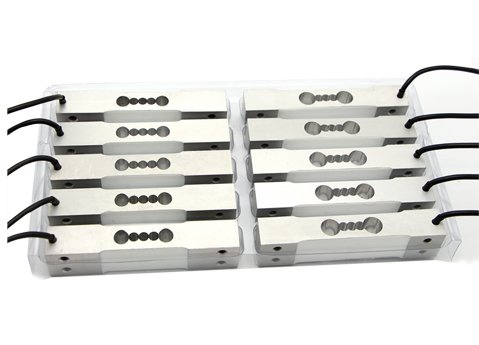

GPB100 Beehive SMS weighing scale single point load cell 100kg
| Data | |
| Range (KG): 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 100, 120 | |
| Accuracy: C2/C3 | Temp. effect on span (%F.S/10℃): ±0.02/± 0.014 |
| Comprehensive error(%F.S): ±0.02/±0.017 | Temp. effect on zero (%F.S/10℃): ±0.03/±0.017 |
| Rated output (mV/ V): 2.0±0.2 | Compensated temp. range (℃): -10~+40 |
| Creep (%F.S/30min): ±0.02/±0.017 | Operation temp. range (℃): -20~+60 |
| Zero balance (%F.S): ±1.0 | Excitation voltage (V): 9-12(DC) |
| Input resistance (Ω): 405±10 | Safe overload (%F.S): 120 |
| Output resistance (Ω): 350±3 | Ultimate overload (%F.S): 150 |
| Insulation resistance (MΩ): ≥5000(100VDC) | Ingress protection: IP6
5 |
What is the GPB100 single point load cell outline ?
How about the dimension of GPB100 single point load cell?

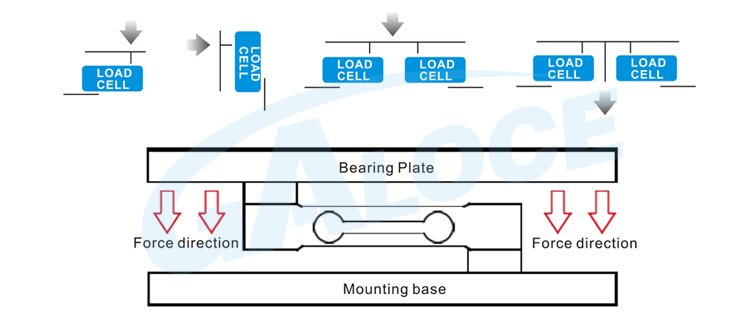

How about the load instruction of GPB100 single point load cell?
How to use GPB100 single point load cell?
