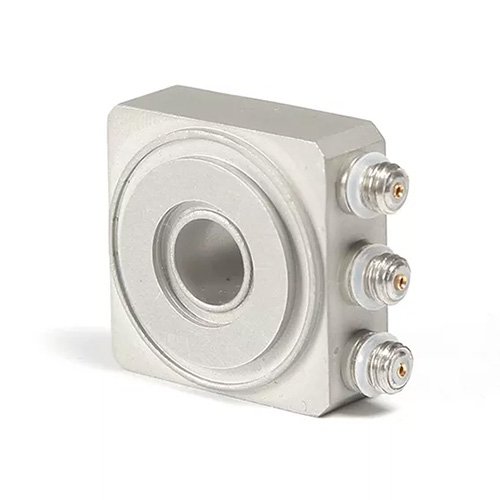

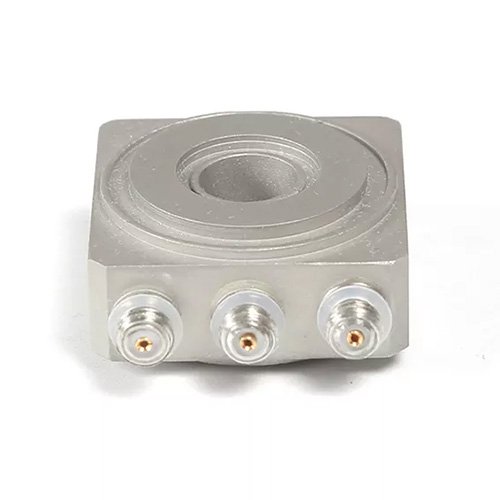

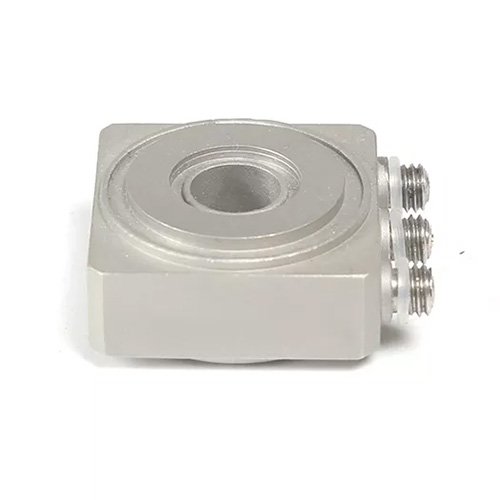

Models
FE025
Features
Dimension：26x26x12(mm)
Sensitivity(20±5℃)：Z:~4pC/N;X/Y:~7.5pC/N
Material：Stainless steel
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Sensitivity (20 ± 5℃) | pC/N | Z: ~4; X/Y: ~7.5 |
| Measurement Range | N | Z: ±5000; X/Y: ±2500 |
| Overload Capacity | %F.S. | 120 |
| Linearity | %F.S. | ≤1 |

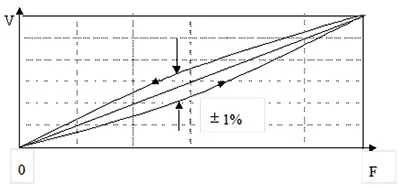

| Hysteresis | %F.S. | ≤1 |
| Repeatability | %F.S. | ≤1 |
| Capacitance | pF | X/Y: ~50; Z: ~100 |
| Insulation Resistance | Ω | ＞10¹³ |
| Resonant Frequency | kHz | ＞40 |
| Operating Temp. Range | ℃ | -54 ~ +120 |
| Weight | g | ~190 |
| Dimensions | mm | 26 × 26 × 12 |
| Housing Material | – | Stainless Steel |
| Installation | – | Φ8 |
| Sensitive Material | – | Quartz |
| Output Method | – | 3-L5 |
| Cable | – | Double-ended L5 low-noise cable × 2m |
