Models

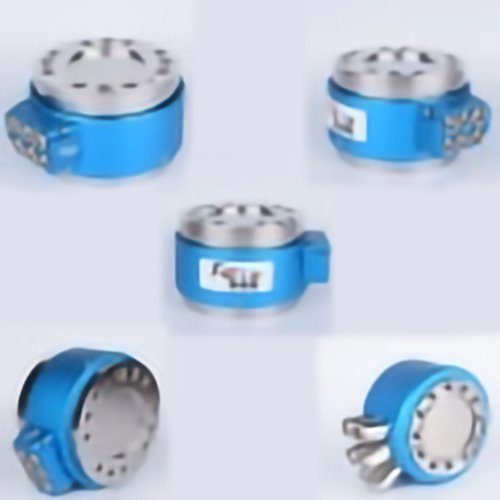

FAR536C
Features
| Product Name | Six Axis Force Sensor | Capacity | Fx,Fy=20kN,Fz=100kN |
|---|---|---|---|
| Material | Stainless Steel | Non-linearity | ≤0.3%F.S. |
| Creep(30min） | ≤0.1%F.S. | Safe Overload | 120%F.S. |
| Ultimate Overload | 150%F.S. | Zero Balance | ±1%F.S. |
| Hysteresis | ≤0.5%F.S. |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Model | – | FA731 |
| Capacity (Fx, Fy) | kN | 20 |
| Capacity (Fz) | kN | 100 |
| Sensitivity (Fx, Fy) | mV/V | 1.5 ± 30% |
| Sensitivity (Fz) | mV/V | 1.2 ± 30% |
| Zero balance | %F.S. | ±1 |
| Creep (30 min) | %F.S. | ≤ 0.1 |
| Non-linearity | %F.S. | ≤ 0.3 |
| Hysteresis | %F.S. | ≤ 0.5 |
| Repeatability | %F.S. | ≤ 0.1 |
| Temp. effect on output | %F.S./10°C | 0.05 |
| Temp. effect on zero | %F.S./10°C | 0.05 |
| Recommended excitation | V | 10 |
| Maximum excitation | V | 15 |
| Safe overload | %F.S. | 120 |
| Ultimate overload | %F.S. | 150 |
| Cable size | – | Air Plug |
| Material | – | Stainless steel |
