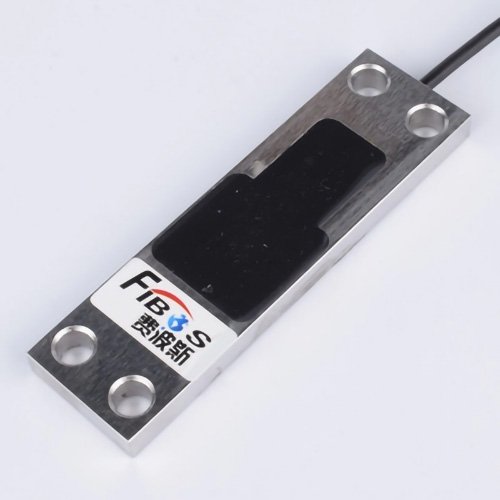

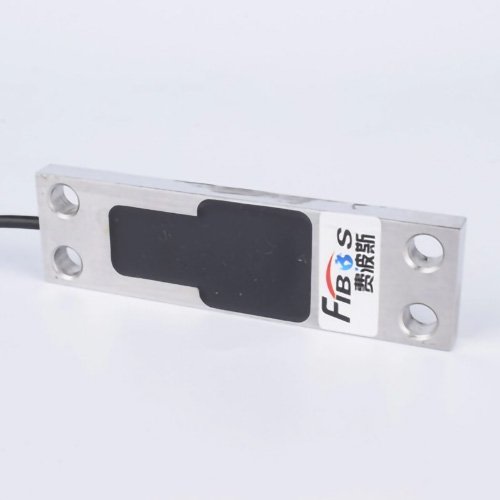

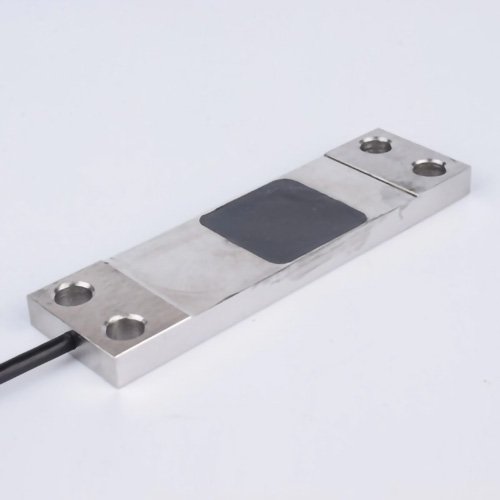

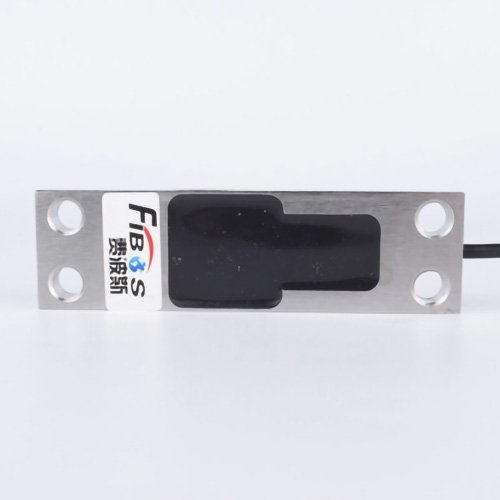

Models
FA902
Features
| Product Name | Tension Force Sensor | Capacity | 50μm/m |
|---|---|---|---|
| Zero Balance | ±0.05mV/V | Rated Output | 1.5±10%mV/V |
| Material | Stainless Steel | IP Class | IP66 |

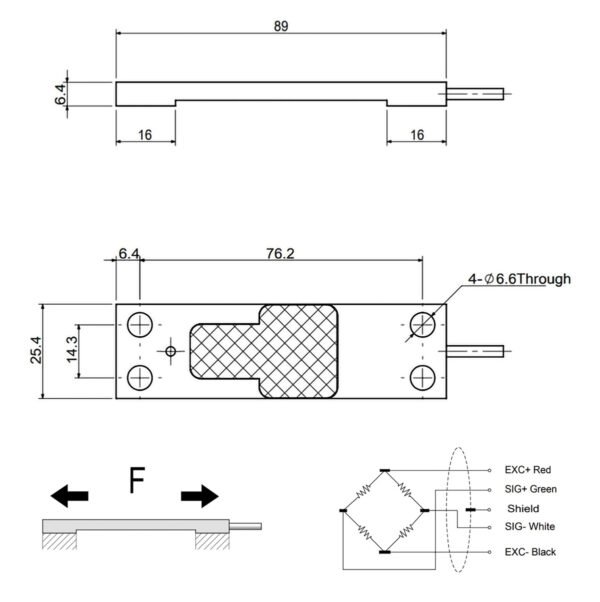

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Tension Force Sensor |
| Capacity | με (microstrain) | 50 μm/m |
| Rated output | mV/V | 1.5 ± 10% |
| Zero Balance | mV/V | ±0.05 |
| Input impedance | Ω | 1000 ± 10 |
| Output impedance | Ω | 1000 ± 10 |
| Temp. effect on output | %F.S./10 ℃ | 0.2 |
| Temp. effect on zero | %F.S./10 ℃ | 0.5 |
| Insulation resistance | MΩ / 100V(DC) | ≥ 5000 |
| Recommended excitation | V | 5 ~ 10 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -20 ~ 60 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀3 × 3000 |
| Weight | kg | 0.4 |
| Material | – | Stainless Steel |
| IP Class | – | IP66 |
