FIBOS / FA822 / 컬럼형 로드셀

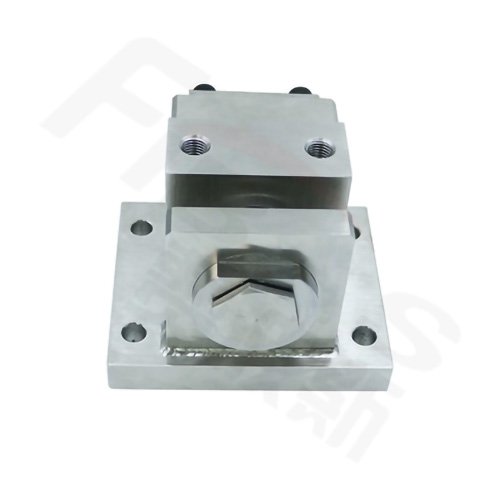

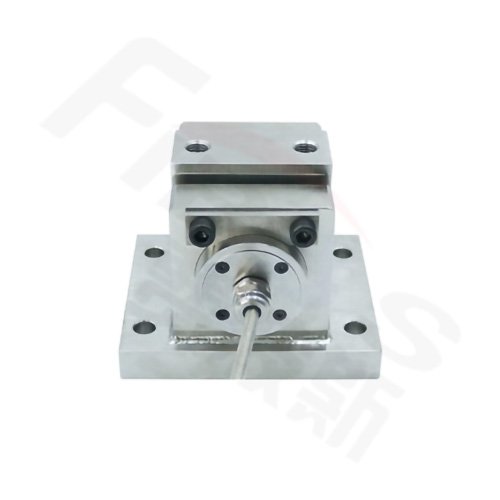

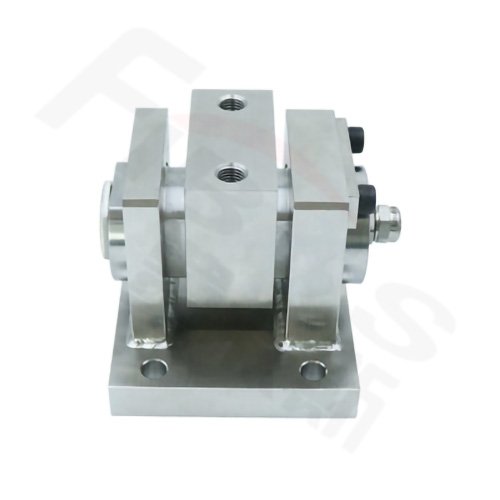

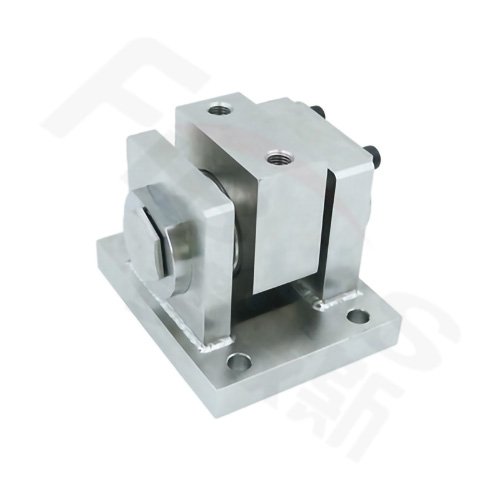

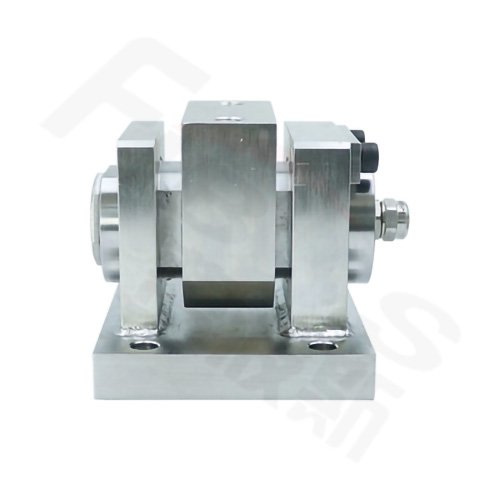

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

Add to Wishlist

Models

FA822

Features

Type	Customized Load Cell	Capacity	10KN, 20KN, 50KN, 100KN, 200KN
Use	Measurement Of Weight	Theory	Convert Weight Into Precise Electrical Signals.

Dimensions

맞춤제작 상품

Specifications

Item	Unit	Specification
Model Number	–	FA822
Type	–	Load Cell
Place of Origin	–	China
Brand Name	–	Fibos
Usage	–	For weight detection of large tank or box
Rated Load (R.L.)	kN	10, 20, 50, 100, 200
Typical Combined Error (terminal)	% of R.O.	0.25
Repeatability	% of R.O.	0.25
Overload (safe, referred to loading point)	% of R.L.	100
Overload (ultimate, referred to loading point)	% of R.L.	200
Input Voltage (recommended)	V DC/AC	10
Input Voltage (maximum)	V DC/AC	18
Input Resistance	ohm	350 ±5
Output Resistance	ohm	350 ±5
Rated Output (R.O.)	mV/V	1
Zero Balance	% of R.O.	±5
Tolerance of Shunt Calibration	% of value	±1 (actual output listed on unit calibration sheet)
Temperature Range	℃	-40 to +80 (or -40 to +100 on request)
Temperature Effect on Output	% of output/°C	±0.04
Temperature Effect on Zero Balance	% of R.O./°C	±0.04
Insulation Resistance at 200V DC	GΩ	>4
