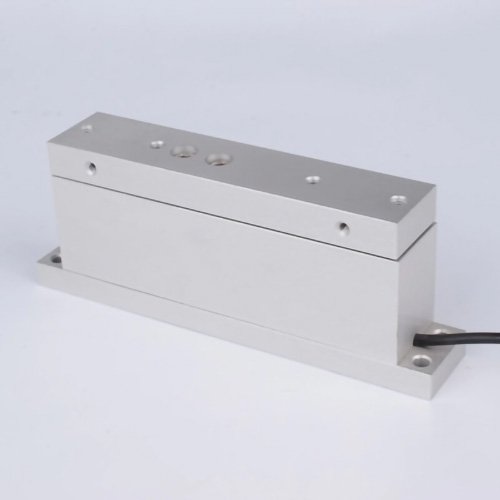

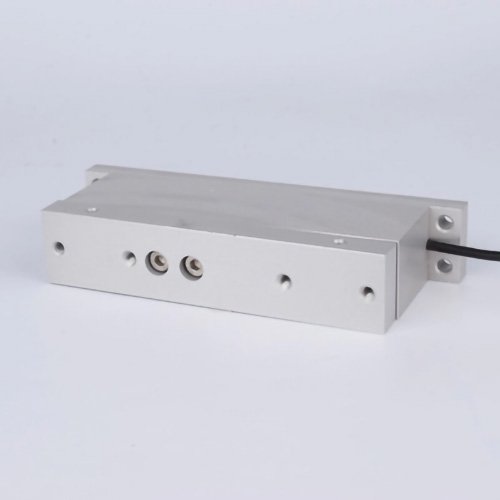

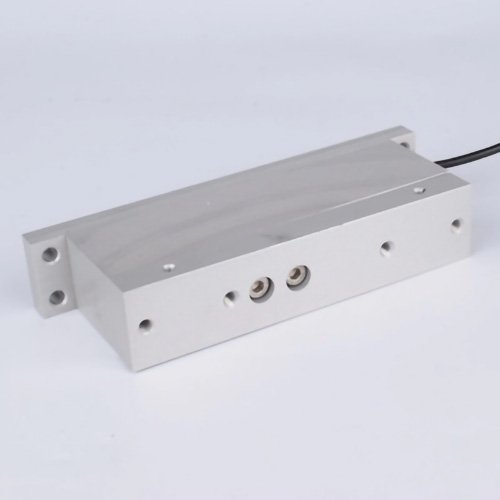

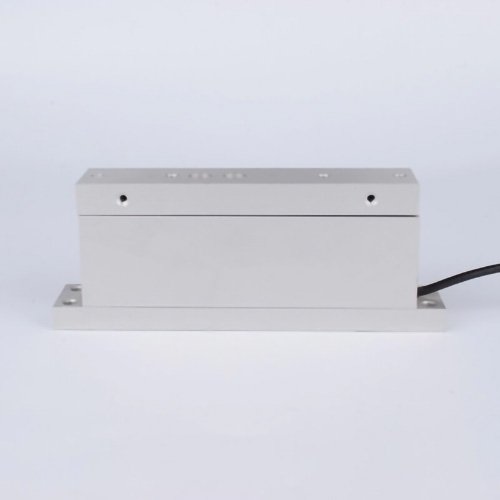

Models
FA821B
Features
| Product Name | Need To Be Customized | Capacity | 50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N Or Customized |
|---|---|---|---|
| Rated Output | 1.5±0.2%mV/V Or Customized | Creep(30min) | ≤0.12%F.S. Or Customized |
| Non-linearity | ≤0.11%F.S. Or Customized | Cable Size | ⌀4X3500mm Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | Weighing Module |
| Capacity | N | 50, 100, 300, 500, 1000, 3000, 5000, 10000, 30000, 50000, 100000, 300000, 500000 or customized |
| Rated Output | mV/V | 1.5 ± 0.2 or customized |
| Zero Balance | mV/V | ±1 |
| Creep (30 min) | %F.S. | ≤0.12 or customized |
| Non-linearity | %F.S. | ≤0.11 or customized |
| Hysteresis | %F.S. | ≤0.13 or customized |
| Repeatability | %F.S. | ≤0.11 or customized |
| Input Resistance | Ω | 385 ± 10 |
| Output Resistance | Ω | 350 ± 1 |
| Insulation Resistance | MΩ/100V(DC) | ≥5000 |
| Recommended Excitation | V | 5–12 |
| Maximum Excitation | V | 15 |
| Compensated Temp Range | ℃ | –10 to 40 |
| Operating Temp Range | ℃ | –40 to 65 |
| Safe Load Limit | %F.S. | 150 |
| Breaking Load | %F.S. | 200 |
| Cable Size | mm | ⌀4 × 3500 or customized |
| IP Class | – | IP66 or customized |
