Models

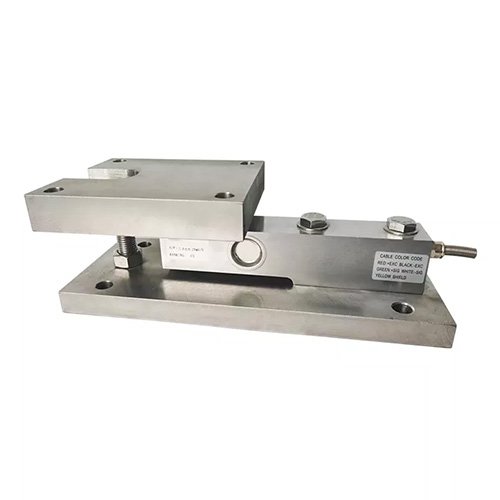

FA801
Features
Sensitivity：2.0±10%mV/V
Accuracy：0.03%F.S.
Material：Stainless Steel/Alloy Steel
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | t | 0.3, 0.5, 1, 2, 3, 5, 8, 10, 20 |
| Sensitivity | mV/V | 2.0 ± 10% |
| Zero Balance | mV/V | ±2 |
| Creep | %F.S. | 0.03 |
| Non-linearity | %F.S. | 0.03 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.03 |
| Input Impedance | Ω | 400 ± 20 |
| Output Impedance | Ω | 352 ± 20 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.02 |
| Temperature Effect on Zero | %F.S./10℃ | 0.02 |
| Insulation Resistance | MΩ (100VDC) | ≥ 5000 |
| Recommended Excitation | VDC | 5 ~ 12 |
| Maximum Excitation | VDC | 15 |
| Compensated Temperature Range | ℃ | -10 ~ +60 |
| Operating Temperature Range | ℃ | -20 ~ +70 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Material | – | Stainless Steel / Alloy Steel |
