Models
FA742
Features
| Product Name | 3 Axis Force Sensor | Capacity | X/Y/Z:10,20,30,50kg |
|---|---|---|---|
| Rated Output | 1.0±10%mV/V | Non-linearity | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. | Material | Stainless Steel |

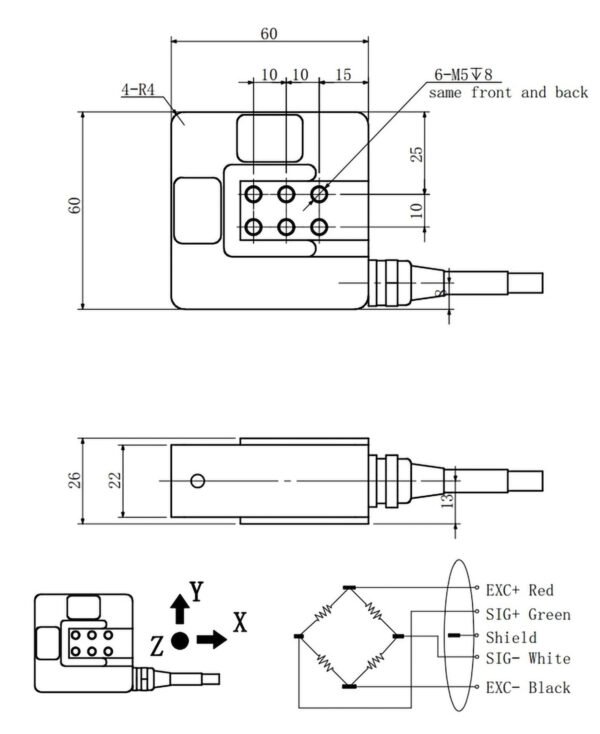

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | kg | X/Y/Z: 10, 20, 30, 50 |
| Rated output | mV/V | 1.0 ± 10% |
| Zero balance | mV/V | ±2 |
| Creep (30 min) | %F.S. | ≤ 0.1 |
| Non-linearity | %F.S. | ≤ 0.1 |
| Hysteresis | %F.S. | ≤ 0.2 |
| Repeatability | %F.S. | ≤ 0.1 |
| Input impedance | Ω | 350 ± 5 |
| Output impedance | Ω | 350 ± 5 |
| Temp. effect on output | %F.S./10℃ | 0.05 |
| Temp. effect on zero | %F.S./10℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥ 5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 60 |
| Operating temp range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | ⌀3 × 3 m |
| Material | – | Stainless steel |
