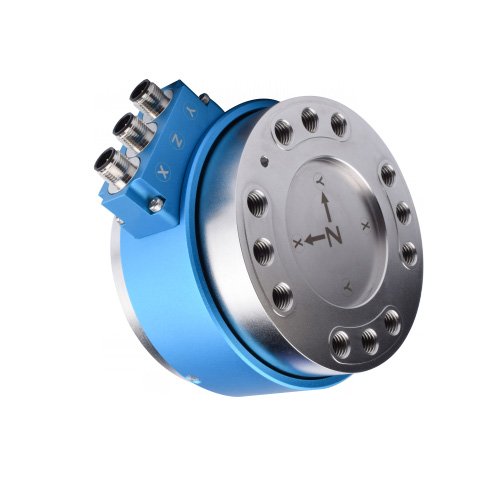

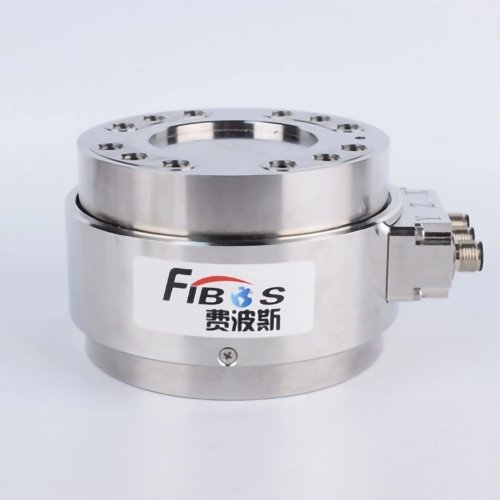

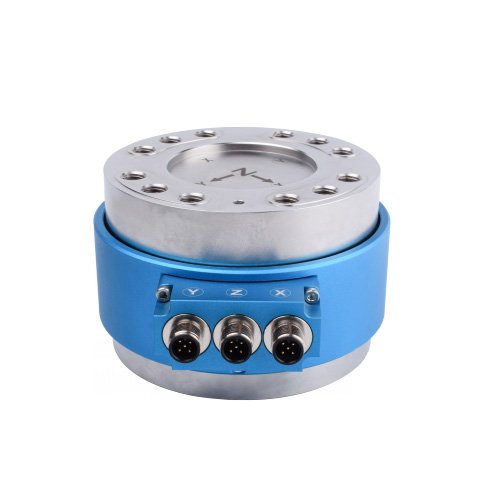

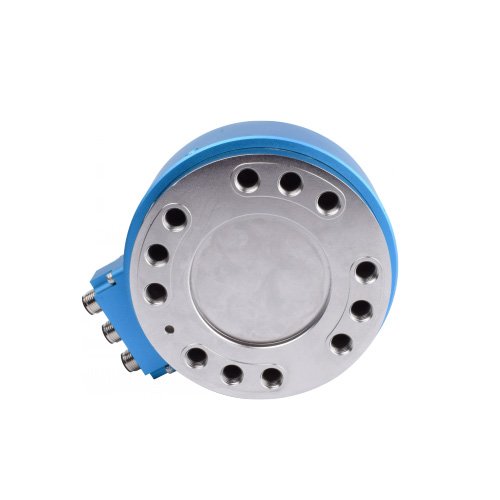

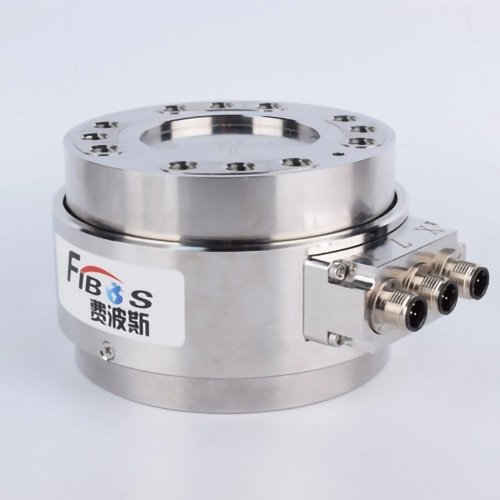

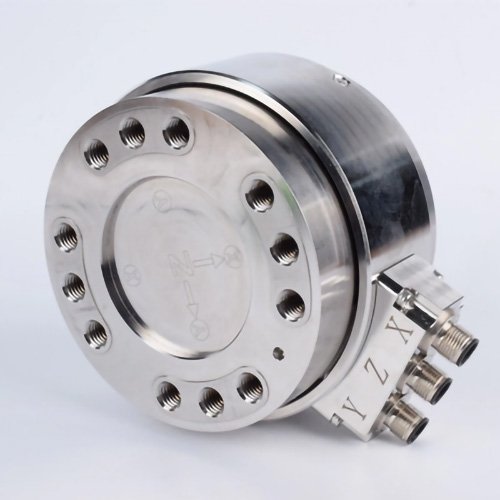

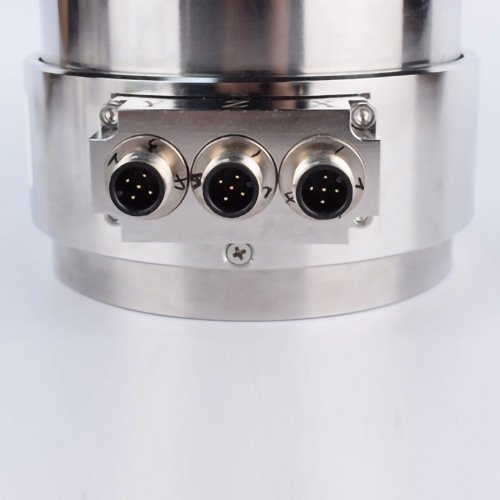

Models
FA731
Features
| Product Name | 3 Axis Force Sensor | Capacity | Fx/Fy/Fz:0.5,1,3,5,10,30kN Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.08%F.S. Or Customized | Non-linearity | ≤0.07%F.S. Or Customized |
| Hysteresis | ≤0.06%F.S. Or Customized | Repeatability | ≤0.08%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | kN | Fx/Fy/Fz: 0.5, 1, 3, 5, 10, 30 or customized |
| Rated output | mV/V | 1.2 ± 30% |
| Zero balance | mV/V | ±1 |
| Creep (30 min) | %F.S. | ≤ 0.08 or customized |
| Non-linearity | %F.S. | ≤ 0.07 or customized |
| Hysteresis | %F.S. | ≤ 0.06 or customized |
| Repeatability | %F.S. | ≤ 0.08 or customized |
| Input impedance | Ω | 385 ± 20 |
| Output impedance | Ω | 350 ± 10 |
| Temp. effect on output | %F.S./10℃ | 0.05 |
| Temp. effect on zero | %F.S./10℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥ 5000 |
| Recommended excitation | V | 10 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 60 |
| Operating temp range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 120 |
| Ultimate overload | %F.S. | 150 |
| Cable size | – | ⌀5 × 2300 mm or customized |
| Material | – | Stainless steel or customized |
