Models

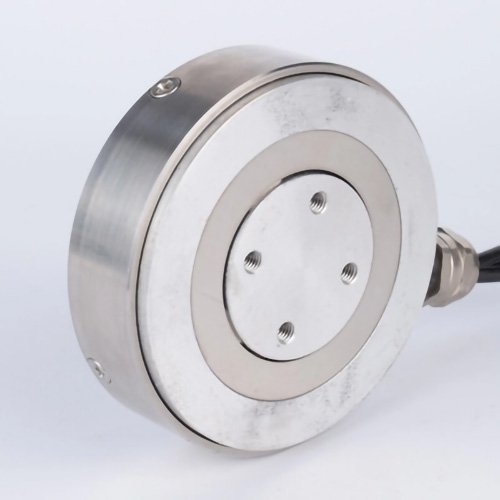

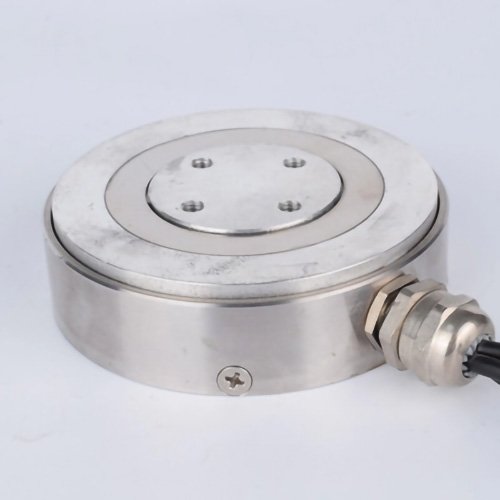

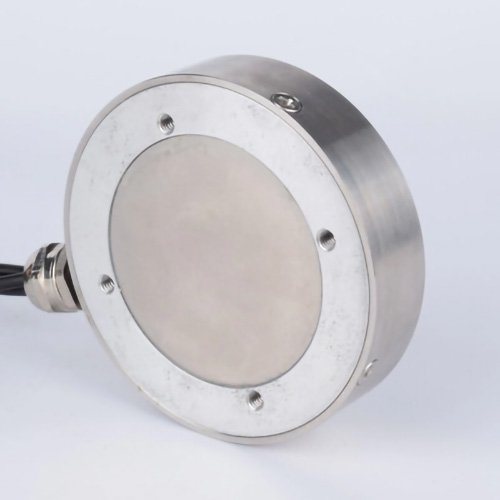

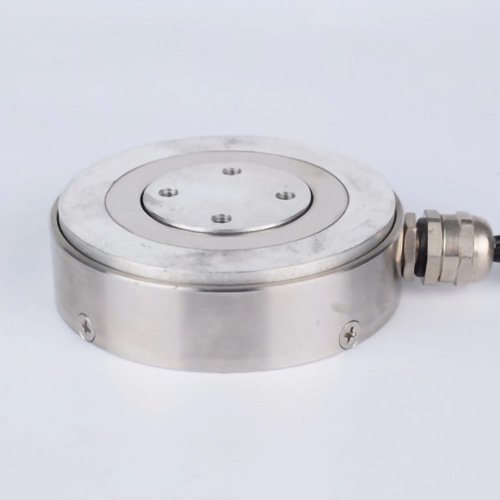

FA730
Features
| Product Name | 3 Axis Force Sensor | Capacity | Fx/Fy/Fz:10,50,100,500kg Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.02%F.S. Or Customized | Non-linearity | ≤0.03%F.S. Or Customized |
| Hysteresis | ≤0.02%F.S. Or Customized | Repeatability | ≤0.02%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | kg | Fx/Fy/Fz: 10, 50, 100, 500 or customized |
| Rated output | mV/V | 1.2 ± 30% |
| Zero balance | mV/V | ±1 |
| Creep (30 min) | %F.S. | ≤ 0.02 or customized |
| Non-linearity | %F.S. | ≤ 0.03 or customized |
| Hysteresis | %F.S. | ≤ 0.02 or customized |
| Repeatability | %F.S. | ≤ 0.02 or customized |
| Input impedance | Ω | 385 ± 20 |
| Output impedance | Ω | 350 ± 10 |
| Temp. effect on output | %F.S./10℃ | 0.05 |
| Temp. effect on zero | %F.S./10℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥ 5000 |
| Recommended excitation | V | 10 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 60 |
| Operating temp range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 120 |
| Ultimate overload | %F.S. | 150 |
| Cable size | – | ⌀3 × 3500 mm or customized |
| Material | – | Stainless steel or customized |
