Models
FA704D
Features
| Product Name | 3 Axis Force Sensor | Capacity | X/Y/Z:5t |
|---|---|---|---|
| Rated Output | ≈1.0±10%mV/V | Non-linearity | ≤0.3%F.S. |
| Repeatability | ≤0.2%F.S. | Material | Stainless Steel |

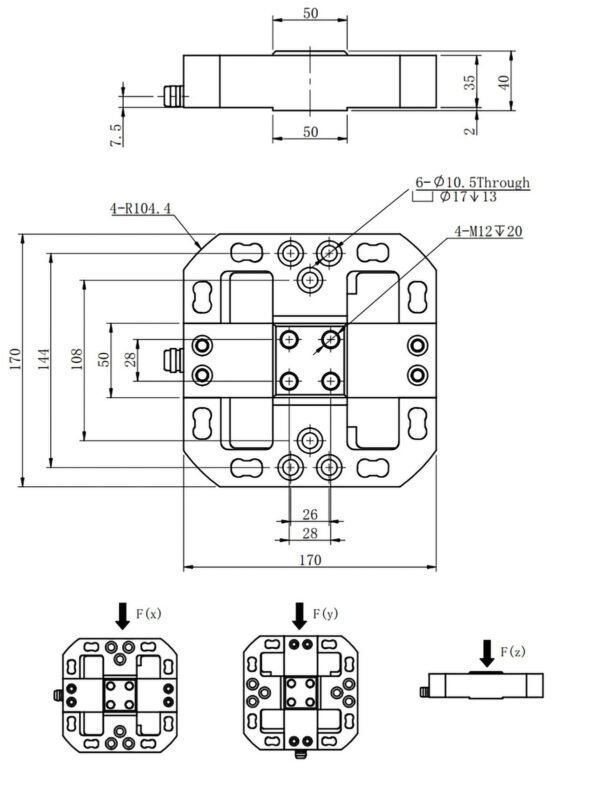

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | ton | X/Y/Z: 5 |
| Rated output | mV/V | ≈1.0 ± 10% |
| Zero balance | mV/V | ±1 |
| Creep (30 min) | %F.S. | ≤ 0.3 |
| Non-linearity | %F.S. | ≤ 0.3 |
| Hysteresis | %F.S. | ≤ 0.3 |
| Interference error | %F.S. | ≤ 1.0 |
| Repeatability | %F.S. | ≤ 0.2 |
| Input impedance | Ω | 350 / 780 ± 10 |
| Output impedance | Ω | 300 / 700 ± 5 |
| Temp. effect on output | %F.S./10℃ | 0.1 |
| Temp. effect on zero | %F.S./10℃ | 0.1 |
| Insulation resistance | MΩ / 100V(DC) | ≥ 5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -20 ~ 75 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | 3m |
| Material | – | Stainless steel |
