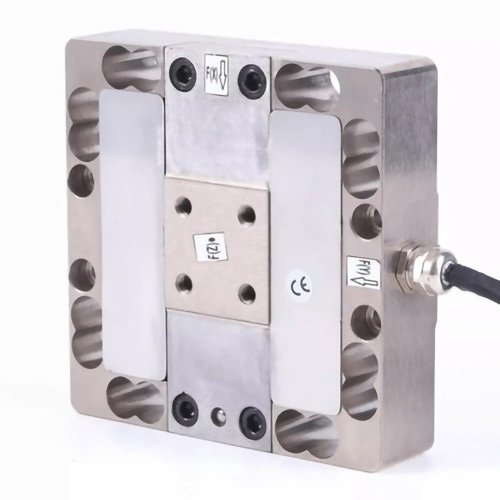

Models
FA704
Features
| Product Name | 3 Axis Force Sensor | Capacity(N) | X:50/100/200/500/1000/2000/5000 Y:50/100/200/500/1000/2000/5000 Z:50/100/200/500/1000/2000/5000 |
|---|---|---|---|
| Rated Output | 1.0mV/V | Non-linearity | 0.1%F.S. |
| Repeatability | 0.1%F.S. | IP Class | IP66 |

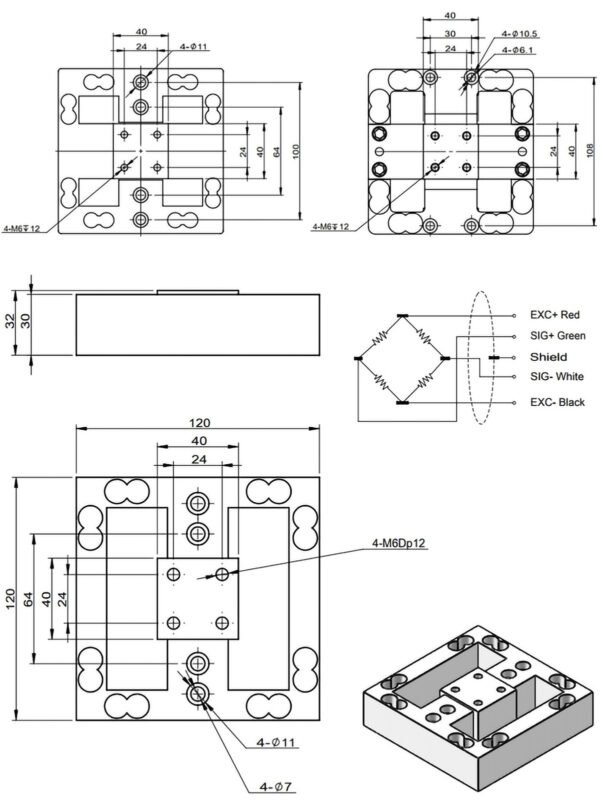

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | N | X/Y/Z: 50 / 100 / 200 / 500 / 1000 / 2000 / 5000 |
| Rated output | mV/V | 1.0 |
| Zero balance | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.1 |
| Repeatability | %F.S. | 0.1 |
| Interference error | %F.S. | 0.3 |
| Temp. effect on output | %F.S./10℃ | 0.1 |
| Temp. effect on zero | %F.S./10℃ | 0.1 |
| Input resistance | Ω | 785 ± 10 |
| Output resistance | Ω | 700 ± 10 |
| Insulation resistance | MΩ / 1000VDC | ≥ 5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -20 ~ 75 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 300 |
| Cable size | – | ⌀5 x 4000 mm |
| IP Class | – | IP66 |
