Models

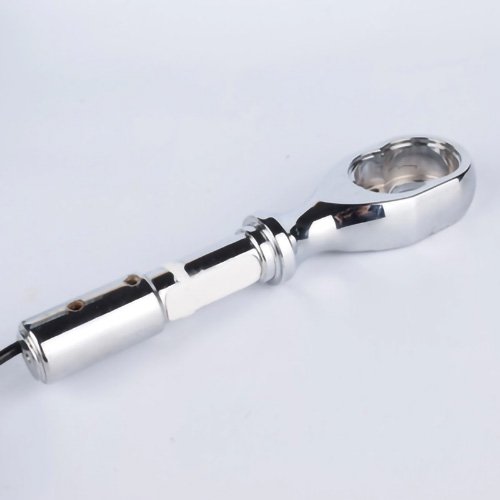

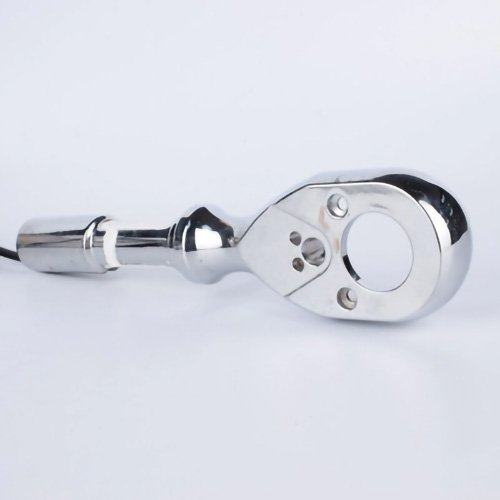

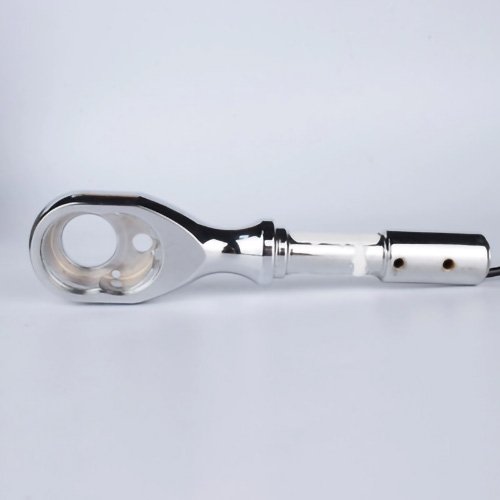

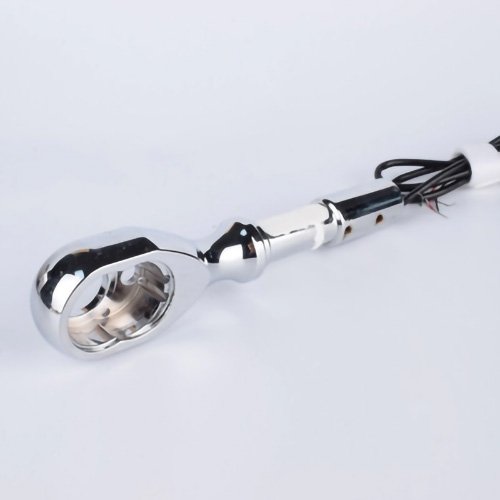

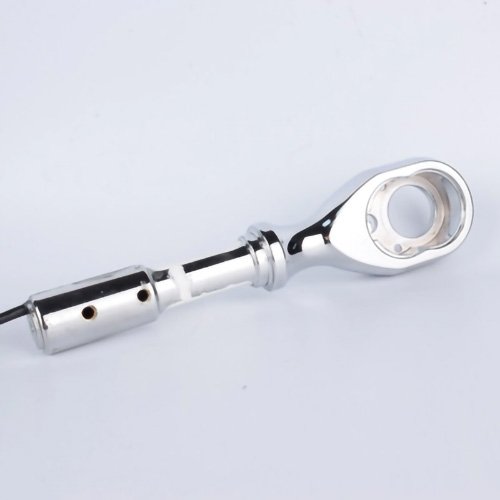

FA621
Features
| Product Name | Force Torque Sensor | Capacity | 0.1,0.2,0.5,1,2,5,10,20,30,50N.m Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.01%F.S. Or Customized | Non-linearity | ≤0.01%F.S. Or Customized |
| Hysteresis | ≤0.01%F.S. Or Customized | Repeatability | ≤0.01%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Force Torque Sensor |
| Capacity | N·m | 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 50 or customized |
| Rated output | mV/V | 2.0 ±1% |
| Zero balance | %F.S. | ±1 |
| Creep (30 min) | %F.S. | ≤0.01 or customized |
| Non-linearity | %F.S. | ≤0.01 or customized |
| Hysteresis | %F.S. | ≤0.01 or customized |
| Repeatability | %F.S. | ≤0.01 or customized |
| Input impedance | Ω | 780 ±20 |
| Output impedance | Ω | 700 ±10 |
| Temp. effect on output | %F.S./10 ℃ | 0.02 |
| Temp. effect on zero | %F.S./10 ℃ | 0.02 |
| Insulation resistance | MΩ/100V (DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 15 |
| Maximum excitation | V | 20 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -10 ~ 70 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | ⌀6 × 3500mm or customized |
