Models

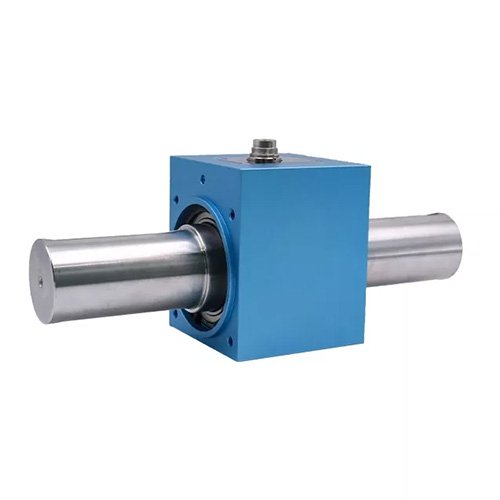

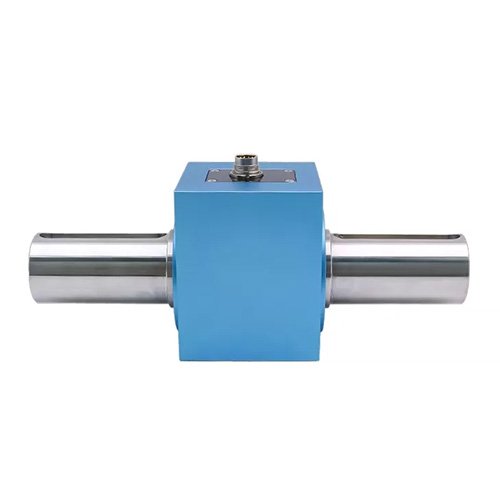

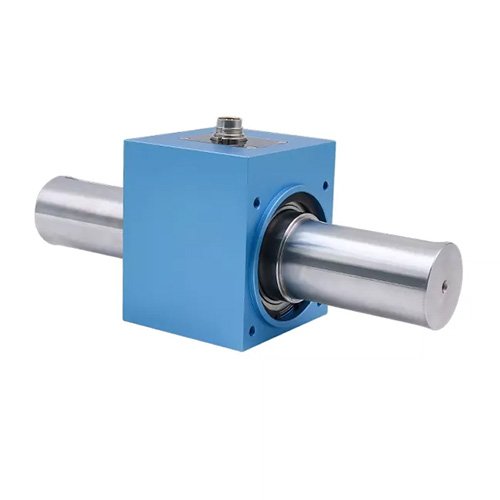

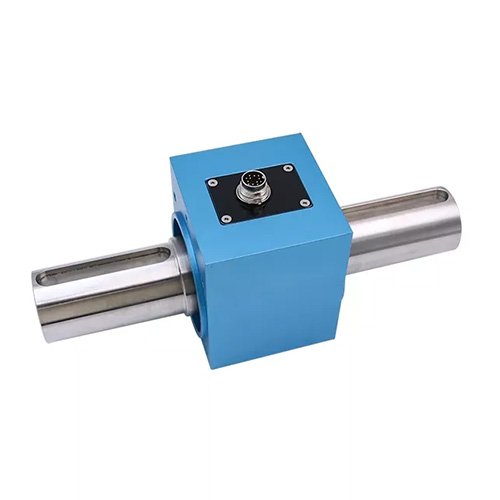

FA620
Features
Speed Range：≤4000rpm
Torque Signal：RS485/±10V/±5V/0-10V/0-5V/5-15KHz
Material：Shell: Aluminium；Axis:17-4PH

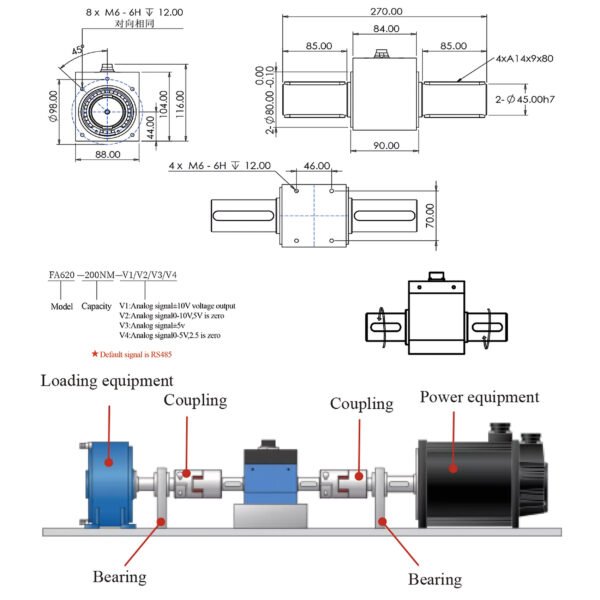

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Torque | N·m | 500 / 1000 / 1300 / 1500 |
| Speed Range | rpm | ≤ 4000 |
| Torque Signal | – | RS485 / ±10V / ±5V / 0–10V / 0–5V / 5–15kHz |
| Speed Signal | – | RS485 / 60 pulses |
| Accuracy | %F.S. | ±0.2 |
| Overload Capacity | %F.S. | 150 |
| Frequency Response | ms | 1 |
| Operating Temperature | ℃ | -20 ~ +80 |
| Temp. Effect on Zero | %F.S./10℃ | 0.15 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.15 |
| Power Supply | VDC | 24 ± 15% |
| Material | – | Shell: Aluminium; Shaft: 17-4PH |
| Cable Size | mm | Φ6 × 3000 |
| Color | Function |
|---|---|
| Red | Power +24V |
| Black | Power Ground (24V–) |
| Green | RS485 (B) |
| Orange | RS485 (A) |
| Brown | Torque Frequency Output |
| White | Speed Output |
| Blue | Analog Voltage Output (+) |
| Yellow | Signal Ground |
