Models

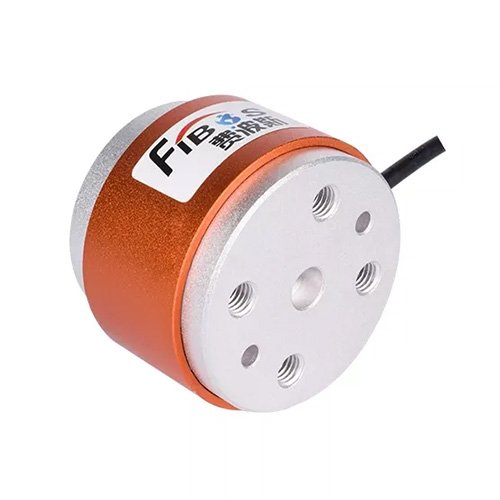

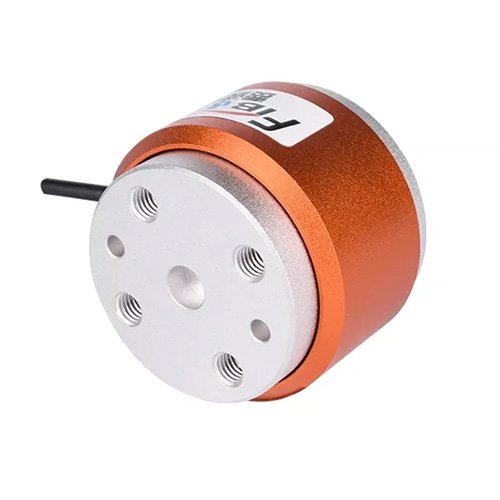

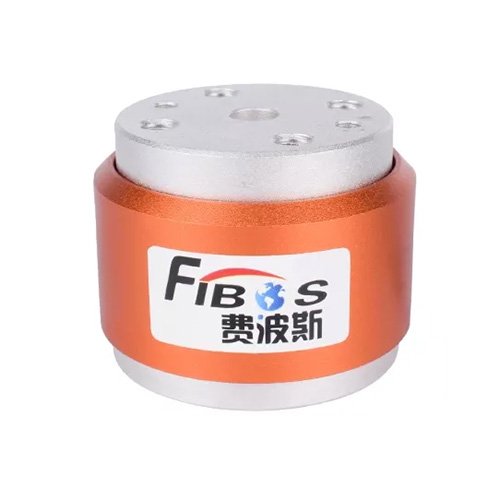

FA602B
Features
Dimension：φ41mm；H=31.8mm
Accuracy：≤0.1%F.S.
Material：Aluminium Alloy
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | N·m | 0.1, 0.2, 0.5, 1, 2, 3, 5, 10 |
| Sensitivity | mV/V | 1.5 ±10% |
| Zero Balance | mV/V | ±2 |
| Creep (30 min) | %F.S. | ≤0.05 |
| Non-linearity | %F.S. | ≤0.1 |
| Hysteresis | %F.S. | ≤0.05 |
| Repeatability | %F.S. | ≤0.05 |
| Input Impedance | Ω | 350 ±5 |
| Output Impedance | Ω | 350 ±5 |
| Temperature Effect on Output | %F.S./10℃ | 0.1 |
| Temperature Effect on Zero | %F.S./10℃ | 0.1 |
| Insulation Resistance | MΩ @ 100VDC | ≥5000 |
| Recommended Excitation | V | 5 ~ 15 |
| Maximum Excitation | V | 20 |
| Compensated Temperature Range | ℃ | -10 ~ +60 |
| Operating Temperature Range | ℃ | -20 ~ +80 |
| Safe Overload | %F.S. | 120 |
| Ultimate Overload | %F.S. | 150 |
| Cable Size | mm | Φ3 × 3000 |
| Material | – | Aluminium Alloy |
