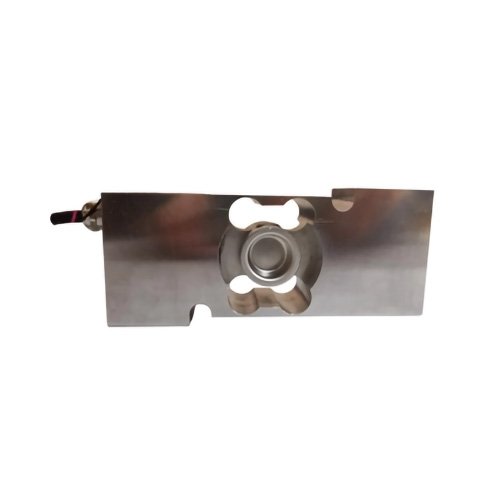

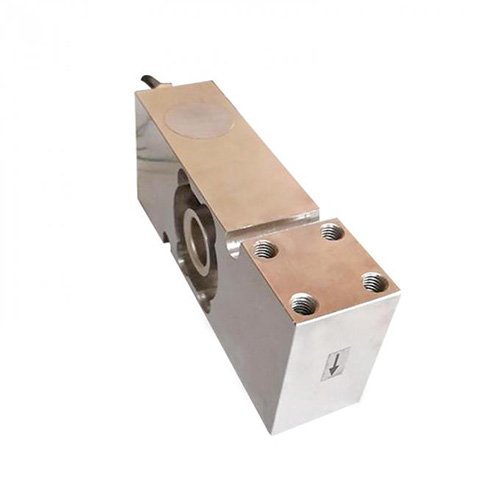

FIBOS / FA568 / 싱글 포인트 로드셀

1. Stainless steel A304, laser welded and sealed
2. Protection grade: IP68, IP69K, applicable to harsh environment
3. Explosion-proof grade: Ex ia IIC T4 Ga; Ex iaD 20 T1354. Suitable for stainless steel waterproof scales and process weighing in chemical, food, and pharmaceutical industries

FA5-Series, Single Point Load Cell FA568 can be used to measure weight 50kg,100kg,200kg,300kg,500kh,1000kg, or customized capacity, its material we use Stainless steel, and we can also customize material.

Add to Wishlist

Models

FA568

Features

Product Name	Electronic Digital Weighing Scale	Model	①FA568-500kg②FA568-1000kg
Capacity	①0-500kg②1000kg	Accuracy	C3
Package Size	383815cm

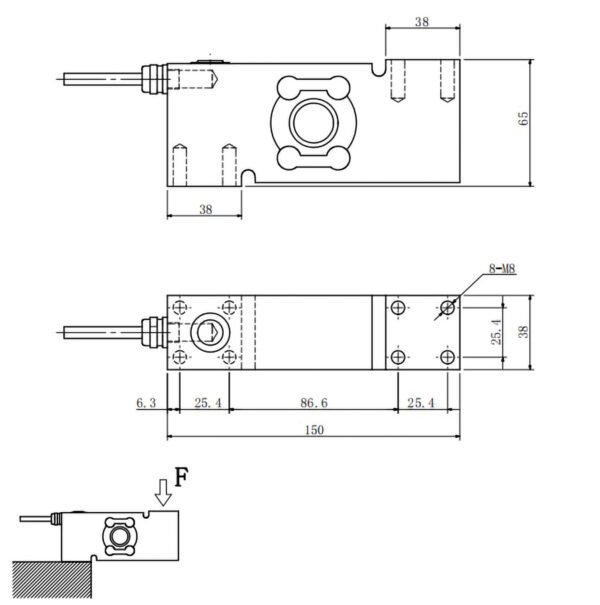

Dimensions

Specifications

Item	Unit	Specification
Technique	–	–
Capacity	kg	50, 100, 200, 300, 500
Rated output	mV/V	2.0 ±1%
Zero balance	mV/V	±2
Creep (30min)	%F.S.	≤0.01
Non-linearity	%F.S.	≤0.017
Hysteresis	%F.S.	≤0.017
Repeatability	%F.S.	≤0.017
Input resistance	Ω	381 ±4
Output resistance	Ω	350 ±1
Temp. effect on output	%F.S./10 ℃	0.02
Temp. effect on zero	%F.S./10 ℃	0.02
Insulation resistance	MΩ/100V (DC)	≥5000
Recommended excitation	V	5~12
Maximum excitation	V	15
Compensated temp range	℃	-10~60
Operating temp range	℃	-20~80
Safe load limit	%F.S.	150
Breaking load	%F.S.	200
Cable size	m	3
