Models
FA536A
Features
| Product Name | Six Axis Force Sensor | Capacity | Fx,Fy,Fz=30N; Mx,My,Mz=1.5Nm |
|---|---|---|---|
| Weight | 0.04kg | Material | Hard Aluminum Alloy |
| Protection Level | IP64 | Precision | 0.1%F.S. |

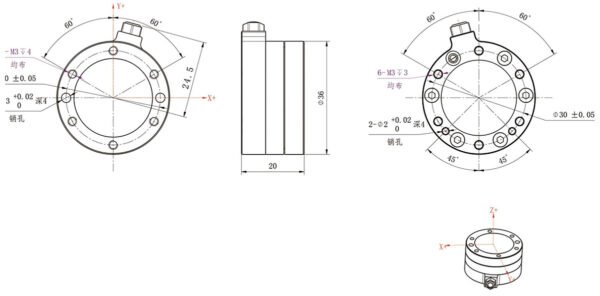

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | Six Axis Force Sensor |
| Model | – | FARS36A |
| Fx, Fy | N | 30 |
| Fz | N | 30 |
| Mx, My | Nm | 1.5 |
| Mz | Nm | 1.5 |
| Diameter | mm | 36 |
| Height | mm | 20 |
| Material | – | Hard aluminum alloy |
| Overload Level | %F.S. | 300 |
| Precision | %F.S. | 0.1 |
| Accuracy | %F.S. | 0.5 |
| Weight | kg | 0.04 |
| Supply Voltage | VDC | 9–24 |
| Working Temperature | °C | 0–80 |
| Sampling Resolution | Bit | 24 |
| Sampling Frequency | Hz | 1000 |
| Protection Level | – | IP64 |
| Communication Method | – | RS422 / RS485 / MODBUS / CAN / EtherCAT / EtherNET / USB / Analog |
| Note | – | *Some parameters depend on data acquisition equipment. |
