Models

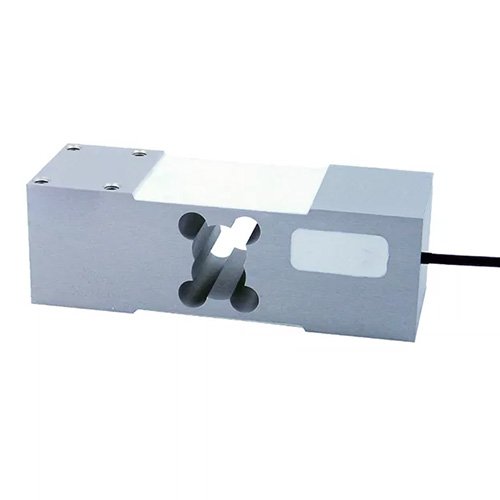

FA5129
Features
Accuracy：C3
Material：L=188mm，W=63mm，H=62mm
Material：Aluminium Alloy
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Maximum Capacity (Emax) | kg | 50 / 75 / 100 / 150 / 200 / 250 / 300 / 500 / 635 |
| Output Sensitivity (FS) | mV/V | 2.0 ± 0.2 |
| Accuracy Class | – | C3 |
| Combined Error | %F.S. | ±0.02 |
| Creep (30min) | %F.S. | ±0.0167 |
| Temp. Effect on Sensitivity | %F.S./10℃ | ±0.0175 |
| Temp. Effect on Zero | %F.S./10℃ | ±0.02 |
| Zero Balance | %F.S. | ±2 |
| Compensated Temp. Range | ℃ | -10 ~ +40 |
| Operating Temp. Range | ℃ | -35 ~ +65 |
| Input Resistance | Ω | 406 ± 6 |
| Output Resistance | Ω | 350 ± 3 |
| Insulation Resistance | MΩ (50VDC) | ≥5000 |
| Recommended Excitation | VDC | 5 ~ 12 |
| Maximum Excitation | VDC | 18 |
| Safe Overload | %F.S. | 120 |
| Ultimate Overload | %F.S. | 150 |
| Protection Class | – | IP65 |
| Cable Diameter | mm | φ5.0 |
| Cable Length | m | 3 |
| Recommended Scale Size | mm | 50–200kg: 600×600 / 250–635kg: 600×800 |
| Corner Correction | %/100mm | 0.02% of load value per 100mm |
| Recommended Torque | N·m | 20 |
| Wiring | – | Red: Input+, Blue: Sense+, Green: Output+, Shield: Transparent |
| Black: Input–, Brown: Sense–, White: Output– |
