Models

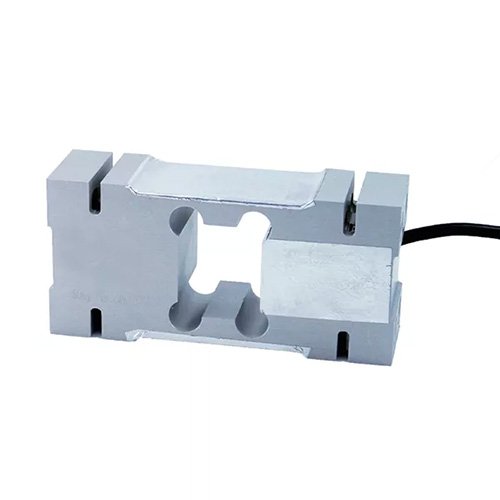

FA5124
Features
Accuracy：C3
IP：IP65
Material：Aluminium Alloy
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Maximum Capacity (Emax) | kg | 50, 60, 80, 100, 150, 200, 250, 300, 400, 500 |
| Output Sensitivity (=FS) | mV/V | 2.0 ± 0.2 |
| Accuracy Class | – | C3 |
| Combined Error | %FS | ±0.02 |
| Creep (30min) | %FS | ±0.0167 |
| Temp. Effect on Sensitivity | %FS / 10℃ | ±0.0175 |
| Temp. Effect on Zero | %FS / 10℃ | ±0.02 |
| Zero Balance | %FS | ±2 |
| Compensated Temp. Range | ℃ | -10 ~ 40 |
| Operating Temp. Range | ℃ | -35 ~ 65 |
| Input Resistance | Ω | 406 ± 6 |
| Output Resistance | Ω | 350 ± 3 |
| Insulation Resistance | MΩ / 50VDC | ≥5000 |
| Recommended Excitation | VDC | 5 ~ 12 |
| Maximum Excitation | VDC | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection Class | – | IP65 |
| Cable Specifications | mm | Φ5.9 |
| Cable Length | m | 3 |
| Recommended Installation Size | mm | 600×600 (50 |
| Corner Deviation | % load/100mm | ≤0.02 |
| Recommended Fixing Torque | N·m | M12: 100N·m (50–500kg)M16: 160N·m (750–2000kg) |
| Wiring Color Code | – | Red: Input+ Brown: Sense+ Blue: Output+ Black: Sense− Yellow: Input− White: Output− Shield: Transparent |
