Models

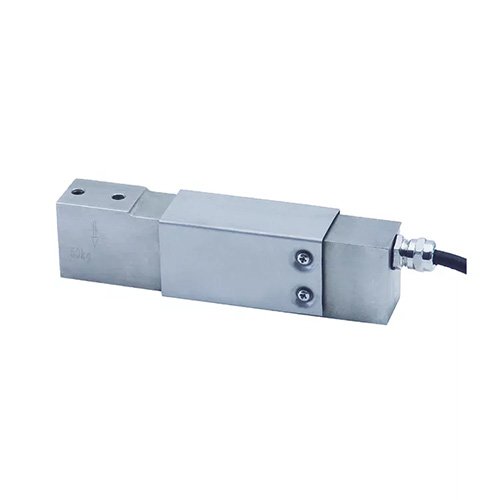

FA5123
Features
Accuracy：C3/C4
IP：IP67
Material：Stainless steel
Dimensions
Specifications
| Item | Unit | C3 Specification | C4 Specification |
|---|---|---|---|
| Maximum Capacity (Emax) | kg | 5, 7, 8, 10, 15, 20, 30, 50, 75, 100, 150, 200 | |
| Accuracy Class | – | OIML R60 C3 | OIML R60 C4 |
| Max. Number of Intervals (nLC) | nmax | 3000 | 4000 |
| Min. Verification Interval Ratio (Y) | – | Emax / 10000Vmin | Emax / 15000Vmin |
| Combined Error | %FS | ≤ ±0.020 | ≤ ±0.018 |
| Creep (30min) | %FS | ≤ ±0.016 | ≤ ±0.012 |
| Temp. Effect on Sensitivity | %FS / 10℃ | ≤ ±0.011 | ≤ ±0.009 |
| Temp. Effect on Zero | %FS / 10℃ | ≤ ±0.015 | ≤ ±0.010 |
| Output Sensitivity (=FS) | mV/V | 2.0 ± 0.2 | 2.0 ± 0.2 |
| Input Resistance | Ω | 384 ± 4 | 384 ± 4 |
| Output Resistance | Ω | 350 ± 3.5 | 350 ± 3.5 |
| Insulation Resistance | MΩ / 50VDC | ≥ 5000 | ≥ 5000 |
| Zero Balance | %FS | ≤ ±1.5 | ≤ ±1.5 |
| Compensated Temp. Range | ℃ | -10 ~ +40 | -10 ~ +40 |
| Operating Temp. Range | ℃ | -35 ~ +70 | -35 ~ +70 |
| Recommended Excitation Voltage | VDC | 5 ~ 12 | 5 ~ 12 |
| Maximum Excitation Voltage | VDC | 18 | 18 |
| Safe Overload | %FS | 150 | 150 |
| Ultimate Overload | %FS | 300 | 300 |
| Corner Correction | %load/100mm | ≤ 0.02 | ≤ 0.02 |
| Recommended Torque on Fixation | N·m | 10 | 10 |
| ATEX Classification (Optional) | – | II1G Ex ia IIC T4II1D Ex iaD20 T73℃II3G Ex nL IIC T4 | Same as C3 |
| Cable Diameter | mm | Φ5 | Φ5 |
| Standard Cable Length | m | 1 | 1 |
| Wiring Color Code | – | Green: Input+Blue: Sense+White: Output+Red: Output−Black: Input−Yellow: Sense−Shield: Transparent | Same as C3 |
