Models
FA5121/FA5122
Features
Accuracy：C3
Combined error：≤±0.020%FS
Material： Stainless/ alloy steel

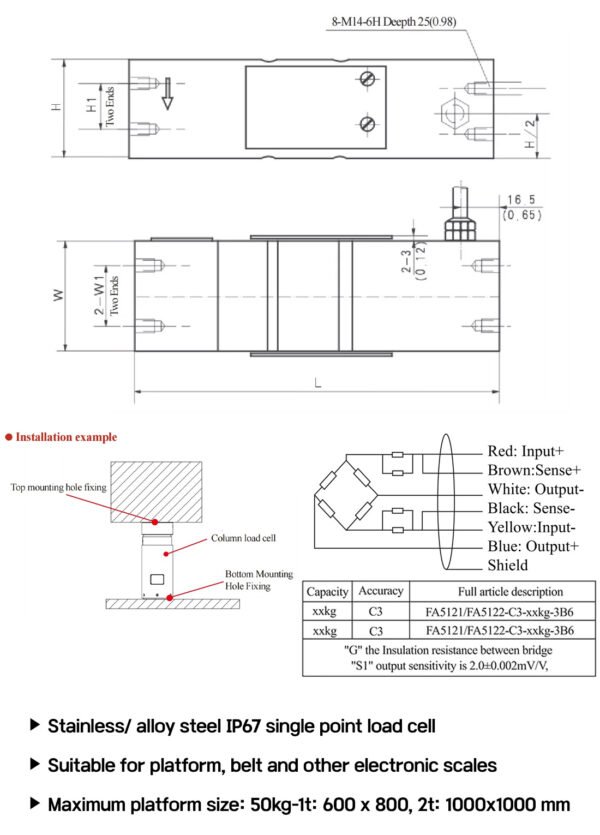

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Maximum Capacity (Emax) | kg / t | 50 / 100 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 750 kg; 1.0 / 1.5 / 2.0 t |
| Accuracy Class | – | C3 |
| Max. Number of Load Cell Intervals | nLC | 3000 |
| Min. Verification Interval Ratio | Y = Emax / Vmin | 10000 |
| Combined Error | %F.S. | ≤ 0.020 |
| Creep (30 min) | %F.S. | ≤ ±0.016 |
| Temp. Effect on Sensitivity | %F.S./10℃ | ≤ ±0.011 |
| Temp. Effect on Zero | %F.S./10℃ | ≤ ±0.015 |
| Output Sensitivity (FS) | mV/V | 2.0 ± 0.2 |
| Input Resistance | Ω | 384 ± 4 |
| Output Resistance | Ω | 351 ± 2.0 |
| Insulation Resistance | MΩ (50VDC) | ≥ 5000 |
| Zero Balance | %F.S. | ≤ ±1.5 |
| Compensated Temperature | ℃ | -10 ~ +40 |
| Operating Temperature | ℃ | -35 ~ +70 |
| Recommended Excitation | VDC | 5 ~ 12 |
| Maximum Excitation | VDC | 18 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 300 |
| Corner Correction | %load/100mm | 0.02 |
| ATEX Classification (Optional) | – | II1G Ex ia II1C T4 / II1D Ex iaD20 T73℃ / II3G Ex nL II C T4 |
| Cable Type | – | Shielded, 4-conductor, φ6.2mm |
| Cable Length | m | 3 |
| Wiring | – | Red: Input+, Brown: Sense+, Bl |
