Models
FA511
Features
Dimension：L=150mm，W=25.4mm，H=39mm
Accuracy：0.0175%F.S.
Material：Aluminium Alloy

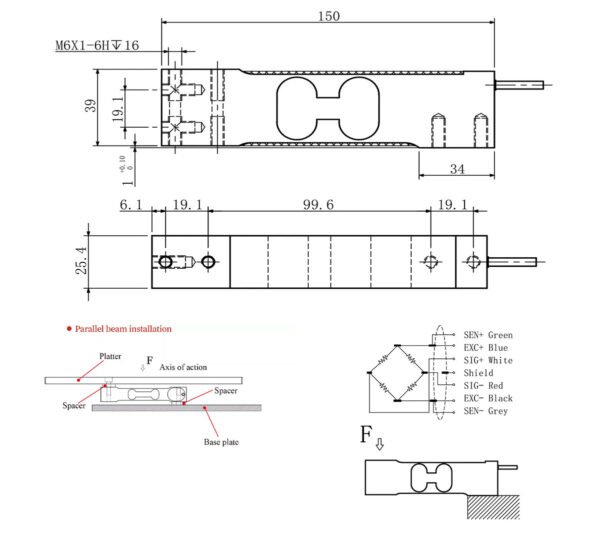

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | kg | 3, 5, 7, 10, 15, 20, 30, 50, 75, 100, 150, 200 |
| Sensitivity | mV/V | 2.0 ± 10% |
| Zero Balance | mV/V | ±2 |
| Creep (30 min) | %F.S. | 0.01 |
| Non-linearity | %F.S. | 0.0175 |
| Hysteresis | %F.S. | 0.0175 |
| Repeatability | %F.S. | 0.0166 |
| Input Impedance | Ω | 300 ~ 500 |
| Output Impedance | Ω | 300 ~ 500 |
| Temperature Effect on Output | %F.S./10℃ | 0.02 |
| Temperature Effect on Zero | %F.S./10℃ | 0.02 |
| Insulation Resistance | MΩ (50VDC) | ≥ 5000 |
| Recommended Excitation | V | 5 ~ 12 |
| Maximum Excitation | V | 15 |
| Compensated Temperature | ℃ | -10 ~ +40 |
| Operating Temperature | ℃ | -10 ~ +50 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | m | 3 |
| Material | – | Aluminium Alloy |
