Models
FA509B
Features
| Product Name | Tension Force Sensor | Capacity | 0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized |
|---|---|---|---|
| Zero Balance | ±2%F.S. | Sensitivity | 1.94±0.1%mV/V |
| Material | Stainless Steel | IP Class | IP68 |
| Non-linearity | ≤0.17%F.S. Or Customized | Maximum Excitation | 20V |
| Recommended Excitation | 5-15V | Safe Overload | 150%F.S. |
| Ultimate Overload | 200%F.S. | Cable Size | ⌀5.4x1500mm Or Customized |

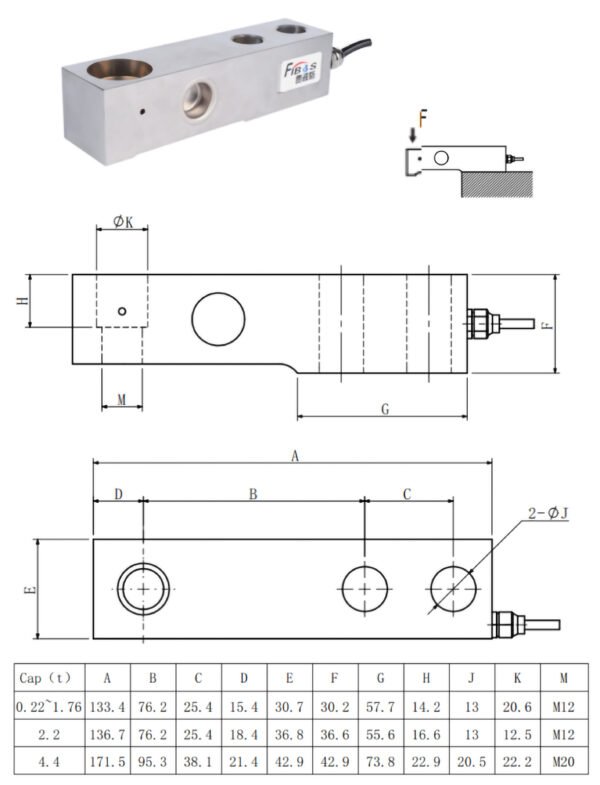

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | t | 0.22, 0.55, 1.1, 1.76, 2.2, 4.4 |
| Rated output | mV/V | 1.94 ± 0.10 |
| Zero balance | mV/V | ±2 |
| Creep (30 min) | %F.S. | ≤ 0.0166 |
| Non-linearity | %F.S. | ≤ 0.017 |
| Hysteresis | %F.S. | ≤ 0.017 |
| Repeatability | %F.S. | ≤ 0.017 |
| Input resistance | Ω | 390 ± 3 |
| Output resistance | Ω | 350 ± 5 |
| Temp. effect on output | %F.S./10℃ | 0.014 |
| Temp. effect on zero | %F.S./10℃ | 0.012 |
| Insulation resistance | MΩ / 100V(DC) | ≥ 5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -30 ~ 70 |
| Safe load limit | %F.S. | 150 |
| Breaking load | %F.S. | 200 |
| Cable size | – | ⌀5.4 × 1.5m |
| Weight | – | – |
| Material | – | Stainless steel |
