Models
FA509
Features
| Product Name | 2.2 Ton Single Shear Beam Load Cell | Capacity | 2.2T |
|---|---|---|---|
| Sensitivity | 1.94±0.1%mV/V | Non-linearity | ≤0.17%F.S. |
| Repeatability | ≤0.17%F.S. | Material | Stainless Steel |
| Zero Balance | ±2%F.S | Creep(30min) | ≤0.0166%F.S |

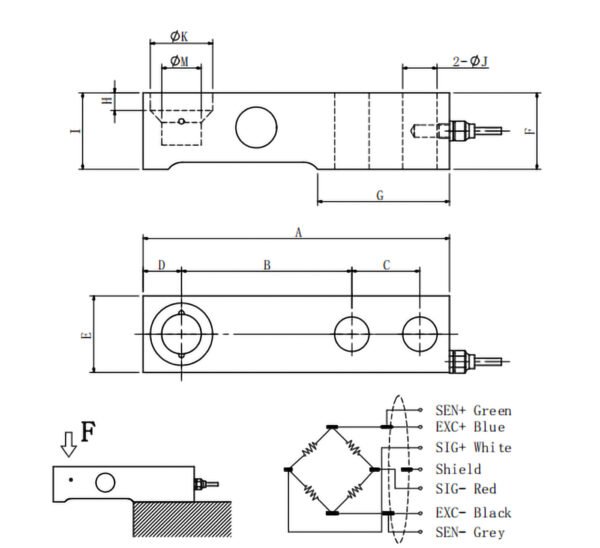

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | 2.2 Ton Single Shear Beam Load Cell |
| Capacity | t | 2.2 |
| Sensitivity (Rated output) | mV/V | 1.94 ±0.1% |
| Zero balance | %F.S. | ±2 |
| Creep (30 min) | %F.S. | ≤0.0166 |
| Non-linearity | %F.S. | ≤0.17 |
| Hysteresis | %F.S. | ≤0.17 |
| Repeatability | %F.S. | ≤0.17 |
| Input impedance | Ω | 390 ±3 |
| Output impedance | Ω | 350 ±5 |
| Temp. effect on output | %F.S./10 ℃ | 0.014 |
| Temp. effect on zero | %F.S./10 ℃ | 0.0125 |
| Insulation resistance | MΩ/100V (DC) | ≥5000 |
| Recommended excitation | V | 5~12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10~60 |
| Operating temp range | ℃ | -20~80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | ⌀5.4×1.5m |
