Models
FA509
Features
| Product Name | Tension Force Sensor | Capacity | 0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.0166%F.S. Or Customized | Non-linearity | ≤0.17%F.S. Or Customized |
| Hysteresis | ≤0.17%F.S. Or Customized | Repeatability | ≤0.17%F.S. Or Customized |

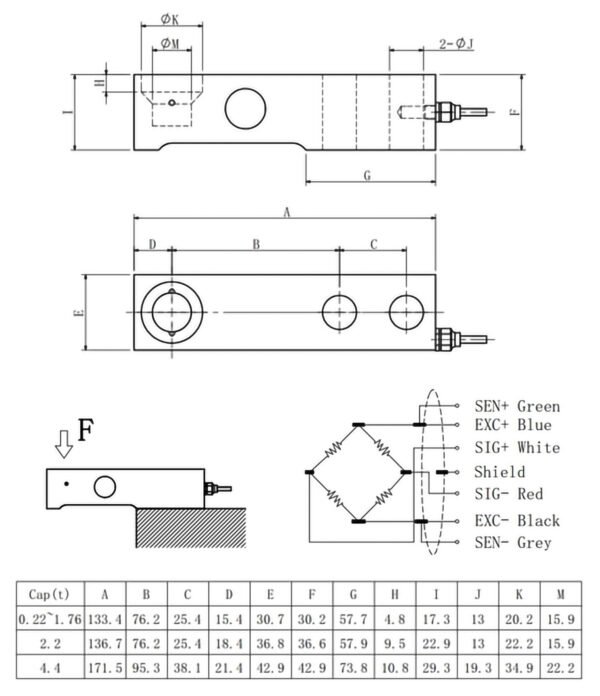

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Tension Force Sensor |
| Capacity | t | 0.22, 0.55, 1.1, 1.76, 2.2, 4.4 or customized |
| Sensitivity (Rated output) | mV/V | 1.94 ± 0.1% |
| Zero Balance | mV/V | ±2 |
| Creep (30 min) | %F.S. | ≤0.0166 or customized |
| Non-linearity | %F.S. | ≤0.17 or customized |
| Hysteresis | %F.S. | ≤0.17 or customized |
| Repeatability | %F.S. | ≤0.17 or customized |
| Input impedance | Ω | 390 ± 3 |
| Output impedance | Ω | 350 ± 5 |
| Temp. effect on output | %F.S./10 ℃ | 0.014 |
| Temp. effect on zero | %F.S./10 ℃ | 0.0125 |
| Insulation resistance | MΩ / 100V(DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 60 |
| Operating temp range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | ⌀5.4×1.5m or customized |
| Weight | kg | 0.5 or customized |
| Material | – | Stainless steel or customized |
