Models

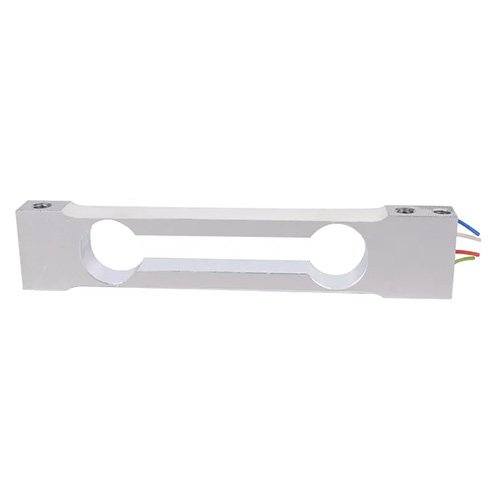

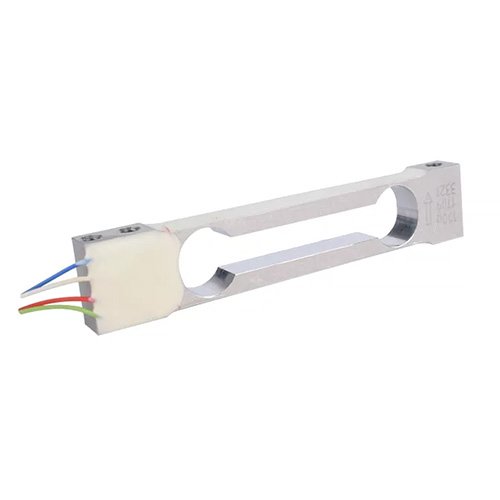

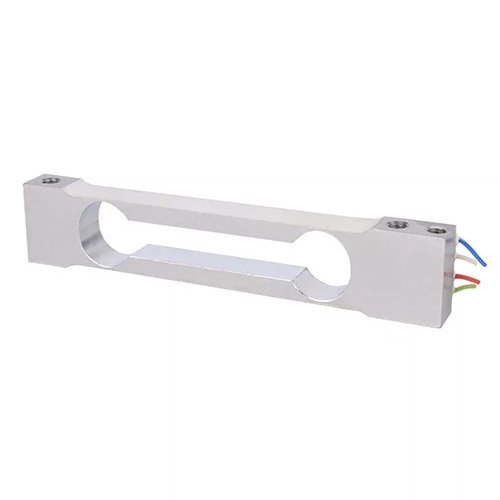

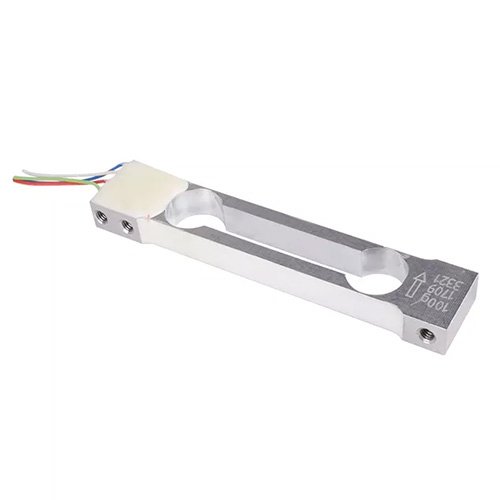

FA5128
Features
Dimension：L=71mm，W=6.5mm，H=14mm
Accuracy：0.015%F.S.
Material：Aluminium Alloy
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | g | 100, 200 |
| Sensitivity | mV/V | 0.9 ± 0.1% |
| Zero Balance | mV/V | ±0.05 |
| Creep (30 min) | %F.S. | 0.0166 |
| Non-linearity | %F.S. | 0.015 |
| Hysteresis | %F.S. | 0.015 |
| Repeatability | %F.S. | 0.015 |
| Input Impedance | Ω | 405 ± 20 |
| Output Impedance | Ω | 350 ± 10 |
| Temperature Effect on Output | %F.S./10℃ | 0.02 |
| Temperature Effect on Zero | %F.S./10℃ | 0.03 |
| Insulation Resistance | MΩ (50VDC) | ≥ 5000 |
| Recommended Excitation | V | 5 ~ 12 |
| Maximum Excitation | V | 15 |
| Compensated Temperature | ℃ | -10 ~ +40 |
| Operating Temperature | ℃ | -10 ~ +50 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | 4-Φ1 × 100 |
| Material | – | Aluminium Alloy |
| Maximum Size of the Scale | mm × mm | 50 × 50 |
