Models
FA507
Features
| Category | Beam Load Cells | Capacity | 100,200g |
|---|---|---|---|
| Rated Output | 0.9±0.1mV/V | Material | Aluminum Alloy |

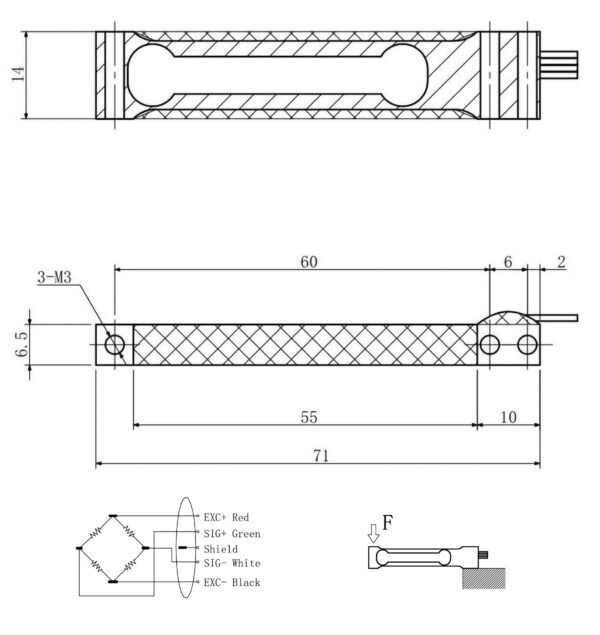

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | g | 100, 200 |
| Accuracy class | – | C3 |
| Rated output | mV/V | 0.9 ± 0.1 |
| Zero balance | mV/V | ±0.05 |
| Non-linearity | %F.S. | 0.015 |
| Hysteresis | %F.S. | 0.015 |
| Repeatability | %F.S. | 0.015 |
| Creep (30 min) | %F.S. | 0.0166 |
| Temp. effect on output | %F.S./10℃ | 0.02 |
| Temp. effect on zero | %F.S./10℃ | 0.03 |
| Input impedance | Ω | 405 ± 20 |
| Output impedance | Ω | 350 ± 10 |
| Insulation resistance | MΩ / VDC | ≥5000 @ 100VDC |
| Recommended excitation | V | 5 ~ 15 |
| Maximum excitation | V | 20 |
| Compensated Temp Range | ℃ | -10 ~ 40 |
| Operating Temp Range | ℃ | -10 ~ 50 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | 4-⌀1 × 100 |
| Material | – | Aluminum alloy |
| IP Class | – | IP65 |
| Max. platform size | mm | 50 × 50 |
