Models

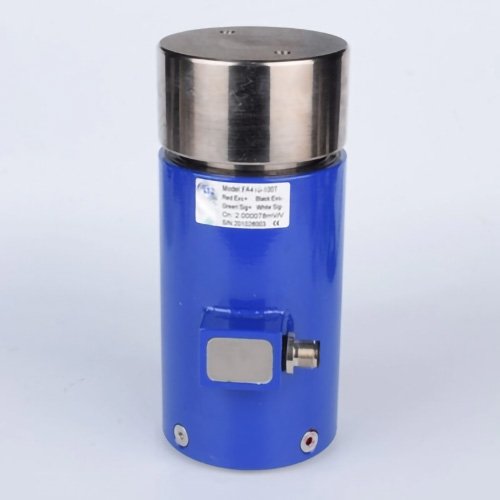

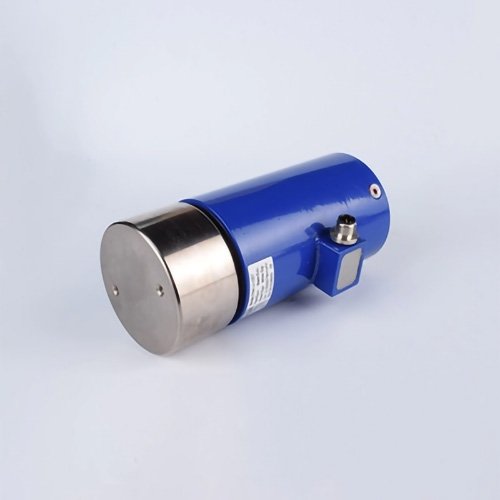

FA410
Features
| Product Name | Column Type Load Cell | Capacity | 50,100,200,500,1000,2000,3000kN |
|---|---|---|---|
| Non-linearity | 0.02%,0.05%,0.1%,0.3%F.S. | Repeatability | 0.02%,0.05%,0.1%,0.3%F.S. |
| Material | Alloy Steel/Stainless Steel | IP Class | IP67 |

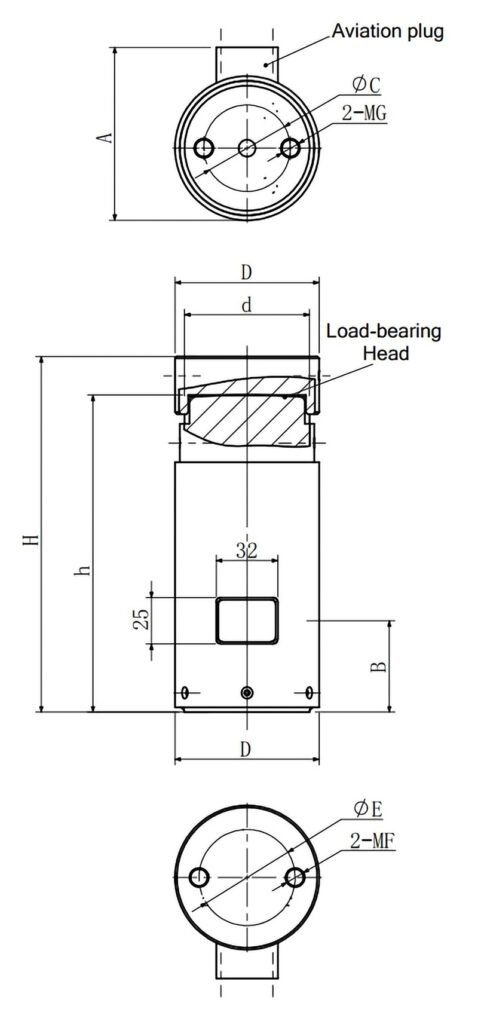

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | Column Type Load Cell |
| Capacity | kN | 50, 100, 200, 500, 1000, 2000, 3000 |
| Rated Output | mV/V | 2.0 ±10% |
| Zero Balance | mV/V | ±1% |
| Non-linearity | %F.S. | 0.02%, 0.05%, 0.1%, 0.3% (Selectable by model or request) |
| Repeatability | %F.S. | 0.02%, 0.05%, 0.1%, 0.3% (Selectable by model or request) |
| Recommended Excitation | V | 5 ~ 12 |
| Maximum Excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -30 ~ 70 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | ⌀5.4 × 6000 |
| Material | – | Alloy Steel or Stainless Steel |
| IP Class | – | IP67 |
