Models

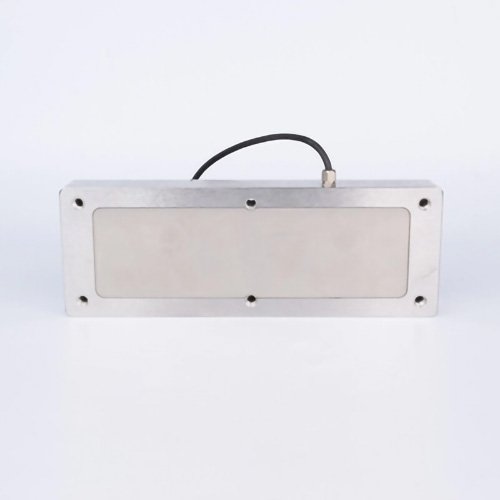

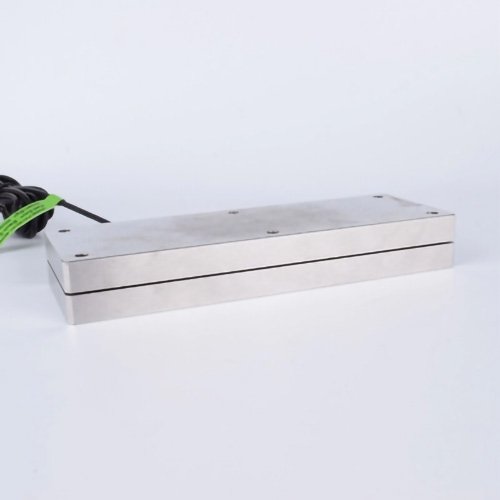

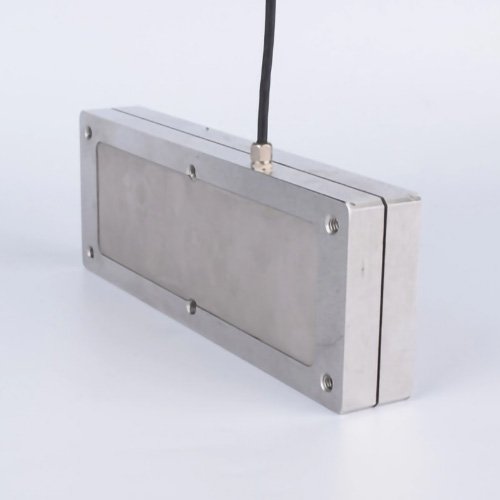

FA130A
Features
| Product Name | Tension Compression Force Sensor | Capacity | 50,100,200,300,500kg Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.06%F.S. Or Customized | Non-linearity | ≤0.06%F.S. Or Customized |
| Hysteresis | ≤0.07%F.S. Or Customized | Repeatability | ≤0.08%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Tension Compression Force Sensor |
| Capacity | kg | 50, 100, 200, 300, 500 or customized |
| Rated output | mV/V | 1.0 ± 20% |
| Zero Balance | mV/V | ±0.5 |
| Creep (30 min) | %F.S. | ≤0.06 or customized |
| Non-linearity | %F.S. | ≤0.06 or customized |
| Hysteresis | %F.S. | ≤0.07 or customized |
| Repeatability | %F.S. | ≤0.08 or customized |
| Input impedance | Ω | 800 ~ 1100 |
| Output impedance | Ω | 800 ~ 1100 |
| Temp. effect on output | %F.S./10 ℃ | 0.05 |
| Temp. effect on zero | %F.S./10 ℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀3 × 2500 or customized |
| Weight | kg | 0.3 or customized |
| Material | – | Stainless steel or customized |
