Models
FA114
Features
| Capacity | 1,2,5,10,20,30,50,100kN | Rated Output | 1.5±10%mV/V |
|---|---|---|---|
| Non-linearity | ≤0.2%F.S. | Repeatability | ≤0.1%F.S. |

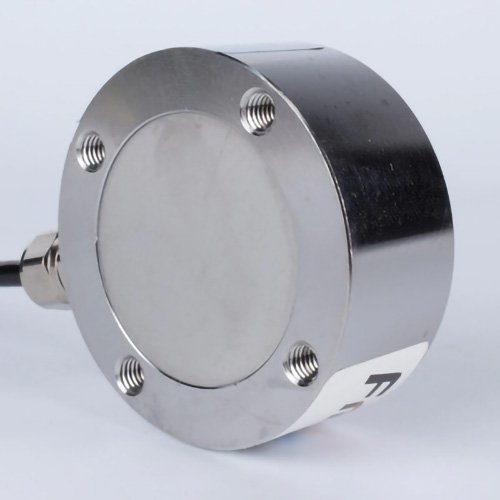

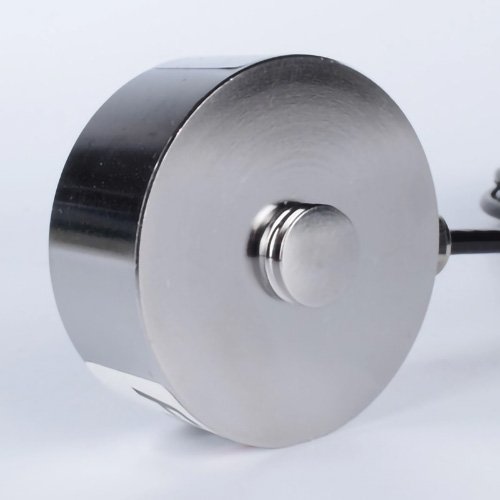

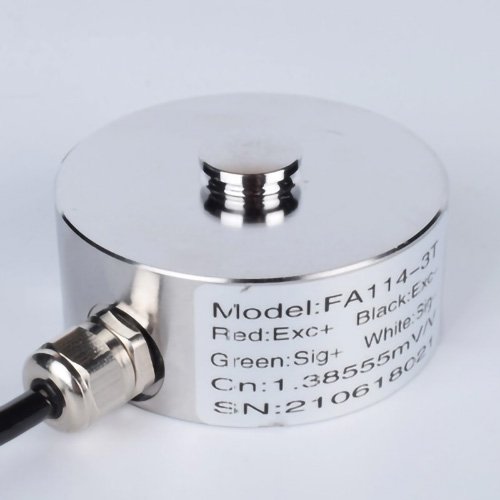

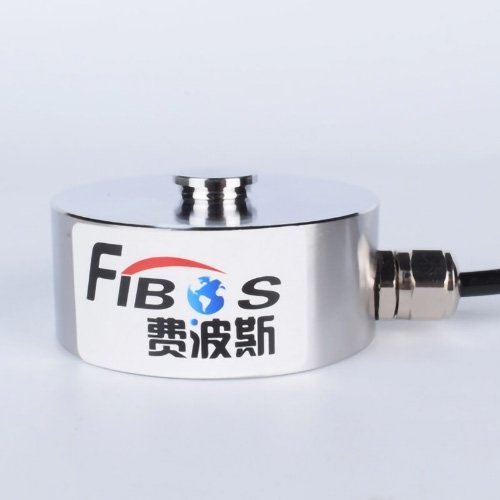

| Material | Stainless Steel | Product Name | Miniature Force Sensor |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Miniature Force Sensor |
| Capacity | kN | 1, 2, 5, 10, 20, 30, 50, 100 |
| Rated output | mV/V | 1.5 ± 10% |
| Zero Balance | %F.S. | ±1 |
| Creep (30 min) | %F.S. | ≤0.1 |
| Non-linearity | %F.S. | ≤0.2 |
| Hysteresis | %F.S. | ≤0.1 |
| Repeatability | %F.S. | ≤0.1 |
| Input impedance | Ω | 780 ± 20 |
| Output impedance | Ω | 700 ± 10 |
| Temp. effect on output | %F.S./10 ℃ | 0.05 |
| Temp. effect on zero | %F.S./10 ℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 15 |
| Maximum excitation | V | 20 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀4 × 3000 |
| Weight | kg | 0.4 |
| Material | – | Stainless Steel |
