Models

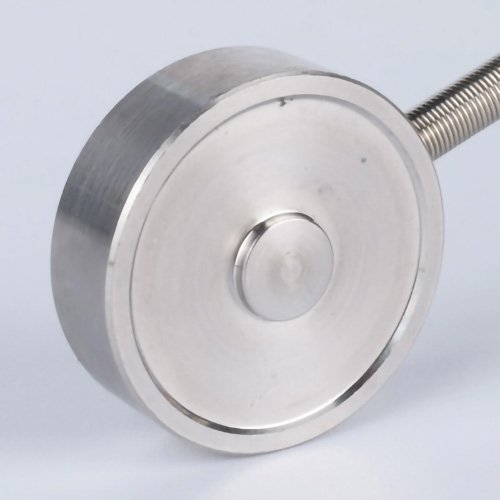

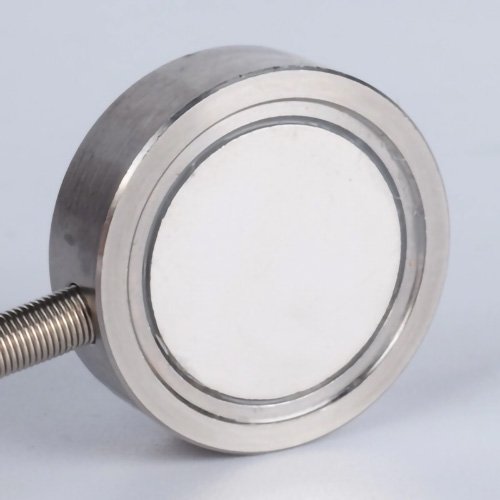

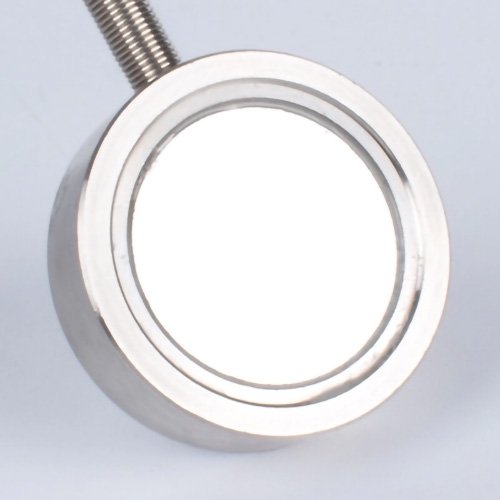

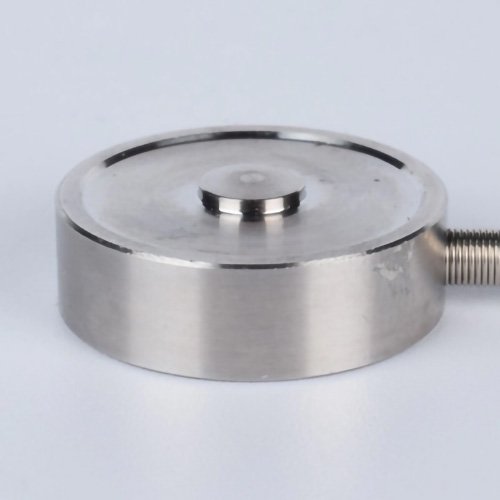

FA113AN
Features
| Product Name | Miniature Force Sensor | Capacity | 1,5,10,20,50,200kg Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.03%F.S. Or Customized | Non-linearity | ≤0.05%F.S. Or Customized |
| Hysteresis | ≤0.05%F.S. Or Customized | Repeatability | ≤0.02%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Miniature Force Sensor |
| Capacity | kg | 1, 5, 10, 20, 50, 200 or customized |
| Rated output | mV/V | 1.0 ± 15% |
| Zero balance | mV/V | ±0.05 or customized |
| Creep (30 min) | %F.S. | ≤0.03 or customized |
| Non-linearity | %F.S. | ≤0.05 or customized |
| Hysteresis | %F.S. | ≤0.05 or customized |
| Repeatability | %F.S. | ≤0.02 or customized |
| Input resistance | Ω | 800 ~ 1100 |
| Output resistance | Ω | 800 ~ 1100 |
| Temp. effect on output | %F.S./10 ℃ | 0.05 |
| Temp. effect on zero | %F.S./10 ℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 10 |
| Maximum excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe load limit | %F.S. | 150 |
| Breaking load | %F.S. | 200 |
| Cable size | mm | ⌀1.2 × 6000 or customized |
| Weight | kg | 0.15 or customized |
| Material | – | Stainless steel or customized |
