Models
FA107B
Features
| Product Name | Miniature Force Sensor | Capacity | 100,200,300,500N |
|---|---|---|---|
| Rated Output | 1.0±20%mV/V | Non-linearity | ≤0.5%F.S. |
| Repeatability | ≤0.3%F.S. | Material | Stainless Steel |

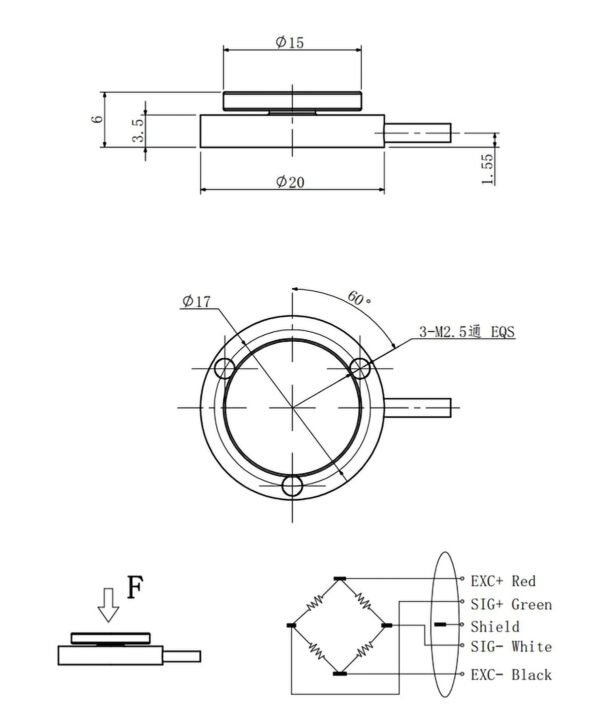

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Miniature Force Sensor |
| Capacity | N | 100, 200, 300, 500 |
| Rated output | mV/V | 1.0 ± 20% |
| Zero Balance | mV/V | ±0.05 |
| Creep (30 min) | %F.S. | ≤0.1 |
| Non-linearity | %F.S. | ≤0.5 |
| Hysteresis | %F.S. | ≤0.3 |
| Repeatability | %F.S. | ≤0.3 |
| Input impedance | Ω | 800 ~ 1100 |
| Output impedance | Ω | 800 ~ 1100 |
| Temp. effect on output | %F.S./10 ℃ | 0.1 |
| Temp. effect on zero | %F.S./10 ℃ | 0.1 |
| Insulation resistance | MΩ / 100V(DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀2 × 3000 |
| Material | – | Stainless steel |
