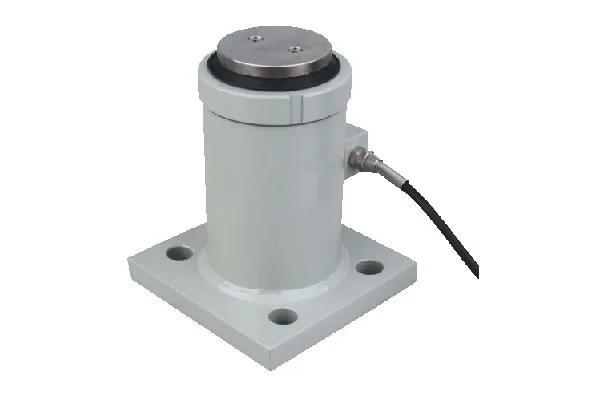

DLC110E Column Type Load Cell
Description of column style load cell
Model: DLC110E
Category: column load cell
Range: 10t 20t 30t 40t 50t
Material: Alloy steel
Features:
1, super shock pressure (column and bridge the biggest difference between the working principle)
2, can be used in water (fully enclosed structure, 10 meters underwater work)
3, can be in a variety of dust, sand and other hostile environment (ball is not exposed)
4, can work in the freezing cold environment. (Sensor sealed, the ball will not freeze)
5, scale body can withstand lateral impact unlimited (sensor comes with reset function)
6, doubling the long-term accuracy and stability time (because there is no indentation caused by no hard ball pressure head, long-term precision changes rarely)
7, compatible with the existing scale load cell sensor mounting dimensions, easy maintenance, and reduce the installation requirements (sensor installation of the center of the center to reduce the request, allowing lateral 5 mm center offset without affecting the accuracy )
Application: Widely used in various weighing and measuring equipment such as electronic platform scales, truck scales and floor scales.
Detailed description of digital sensor technical indicators:
|
Range (t): 10, 20, 30, 40, 50 |
|
|
Accuracy level : C2/C3 |
Digital module resolution (code) : 1,000,000 |
|
Comprehensive error (%F.S) : ±0.02 |
Communication Baud Rate (BPS) : 9600 |
|
Rated output (counts) : 1,000,000 |
Communication interface (cable) : RS 485/RS232 |
|
Creep (%F.S/30min) : ±0.02 |
Data refresh frequency (s) : 50HZ |
|
Sensitivity temperature effect (%F.S/10°C): ±0.02 |
Maximum verification scale value (n max) : 5000 |
|
Zero temperature effect (%F.S/10°C) : ±0.02 |
Maximum transmission distance (m) : 1000 |
|
Temperature compensation range (°C ) : -30~+70 |
Bus address number (max) : 32 |
|
Use temperature effect (°C ) : -30~+70 |
Safety overload range (%F.S) : 150 |
|
Excitation voltage (V) : 5.5~12(DC) |
Protection level : IP68 |

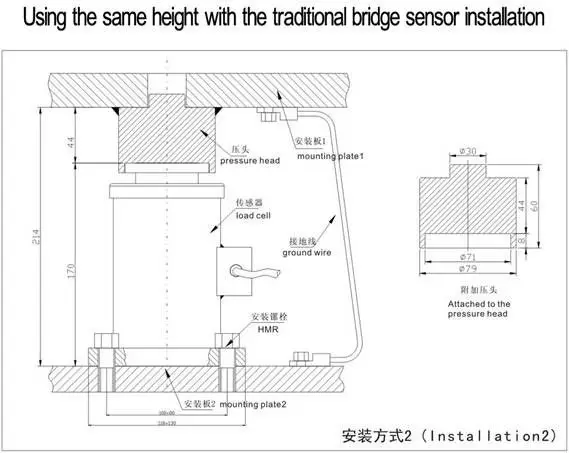

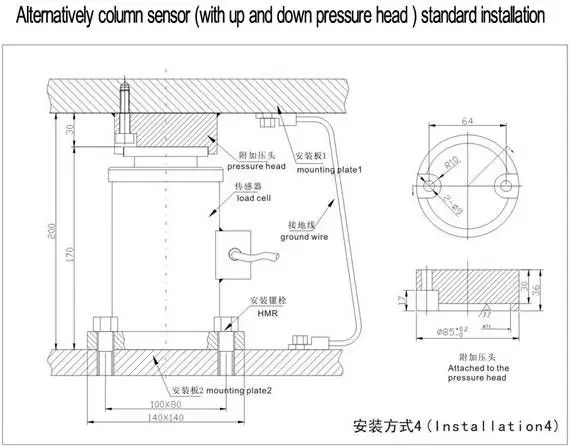

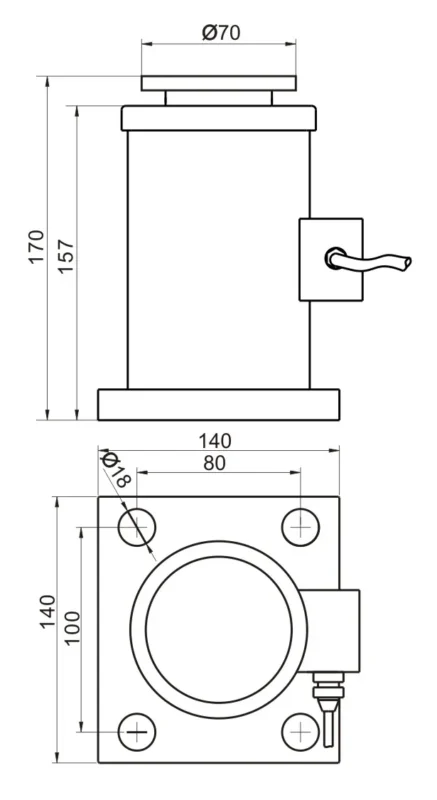

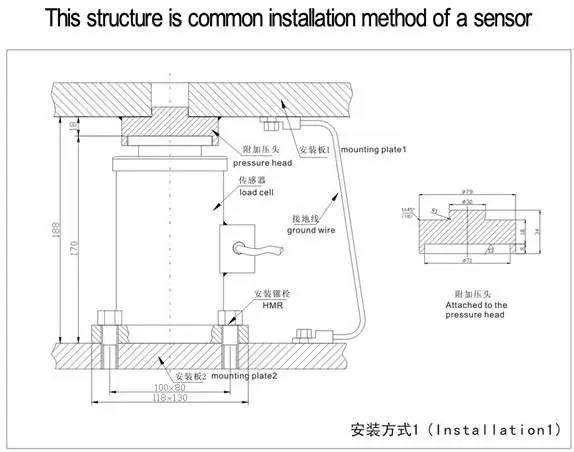

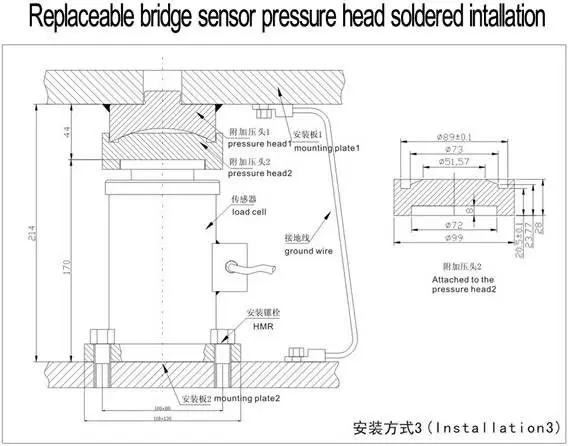

Installation dimension specification (unit: mm):
Force diagram:
Digital sensor wiring method:
Red line: Incentive ( +) 111 Green line: Signal ( +)
Black line: Incentive ( -) 111 White line: Signal ( -)
Remarks: 6-core shielded cable is used. The standard cable length is 10 meters. If you have special needs, you can provide it according to customer requirements!
