Rotary torque sensor is used to measure the value of rotary torque, because the output is a frequency square wave signal or 4-20mA current signal, anti-interference ability is strong, easy to use, because the sensor is transformer induction power supply, can work for a long time, widely used in motor, generator, reducer, diesel engine torque, speed and power detection.
| Item | Specification |
|---|---|
| Output Signal Type | Analog |
| Production Process | Integration |
| State | Dynamic |
| Accuracy Grade | 0.1G |
| IP Rating | IP68 |
| Certification | RoHS |
| Customized | Non-Customized |
| Sensor Type | Dynamic Torque Sensor |
| Characteristics | Small Size Dynamic Torque Sensor |
| Work Environment | -10 ~ 50 ℃ |
| Output Type | Analog Signal |
| Precision | 0.1 % |
| Transport Package | Carton Box |
| Specification (Dimensions) | 28 × 25 × 11 |
Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance Maximum measuring speed 100 rpm
Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal: Pulse, 4-20mA

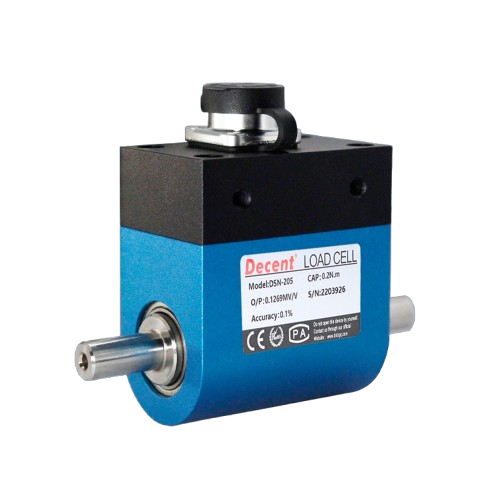

Dynamic Rotary Torque Sensor
Capacity: 5,10,20,50,100,200,500N.m
Category: Dynamic Rotary Torque Sensor
Product description:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
