DYP530 Single Point Load Cell
Special features
- Stainless steel construction
- capacities from 10kg to 30kg
- Complies with OIML R60 regulations up to 6000d divisions
- Special silicone rubber potting (IP67)
- Stainless steel cable connector
- Off-center load compensated(OIML R76)
- Applications: platform scale, packaging scale and process weighing systems
Option
- Aligned output, suitable for parallel connection
- Various cable lengths
- Explosion-proof versions

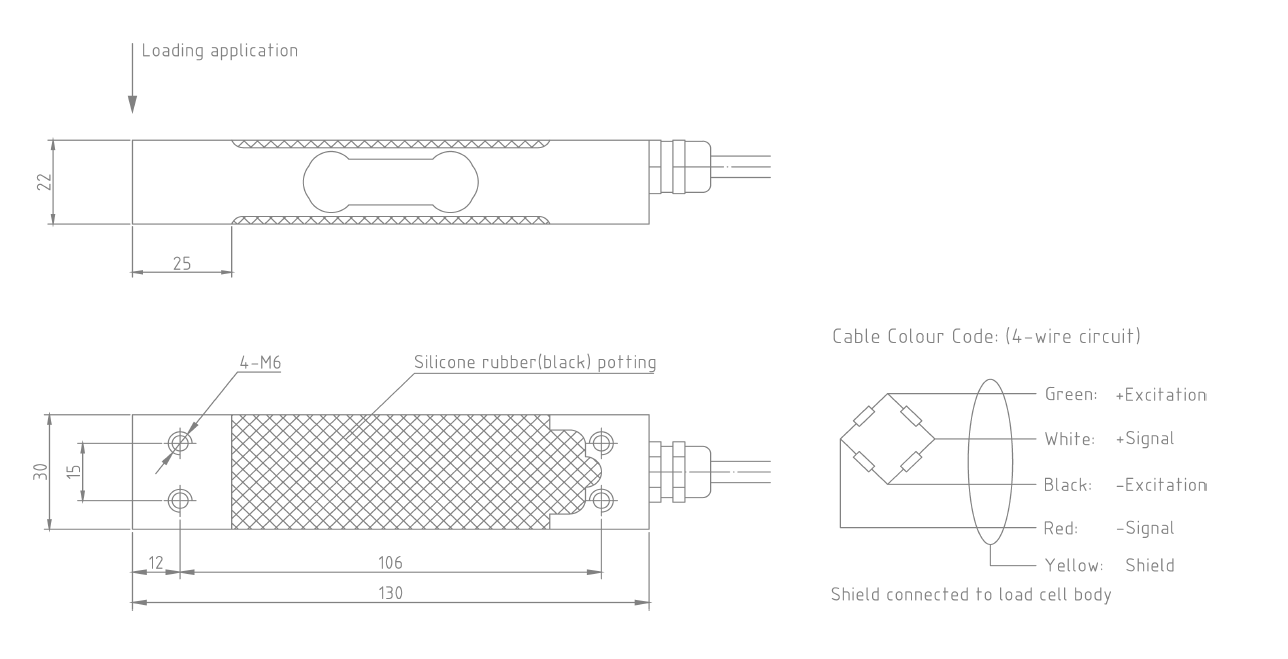

Dimensions

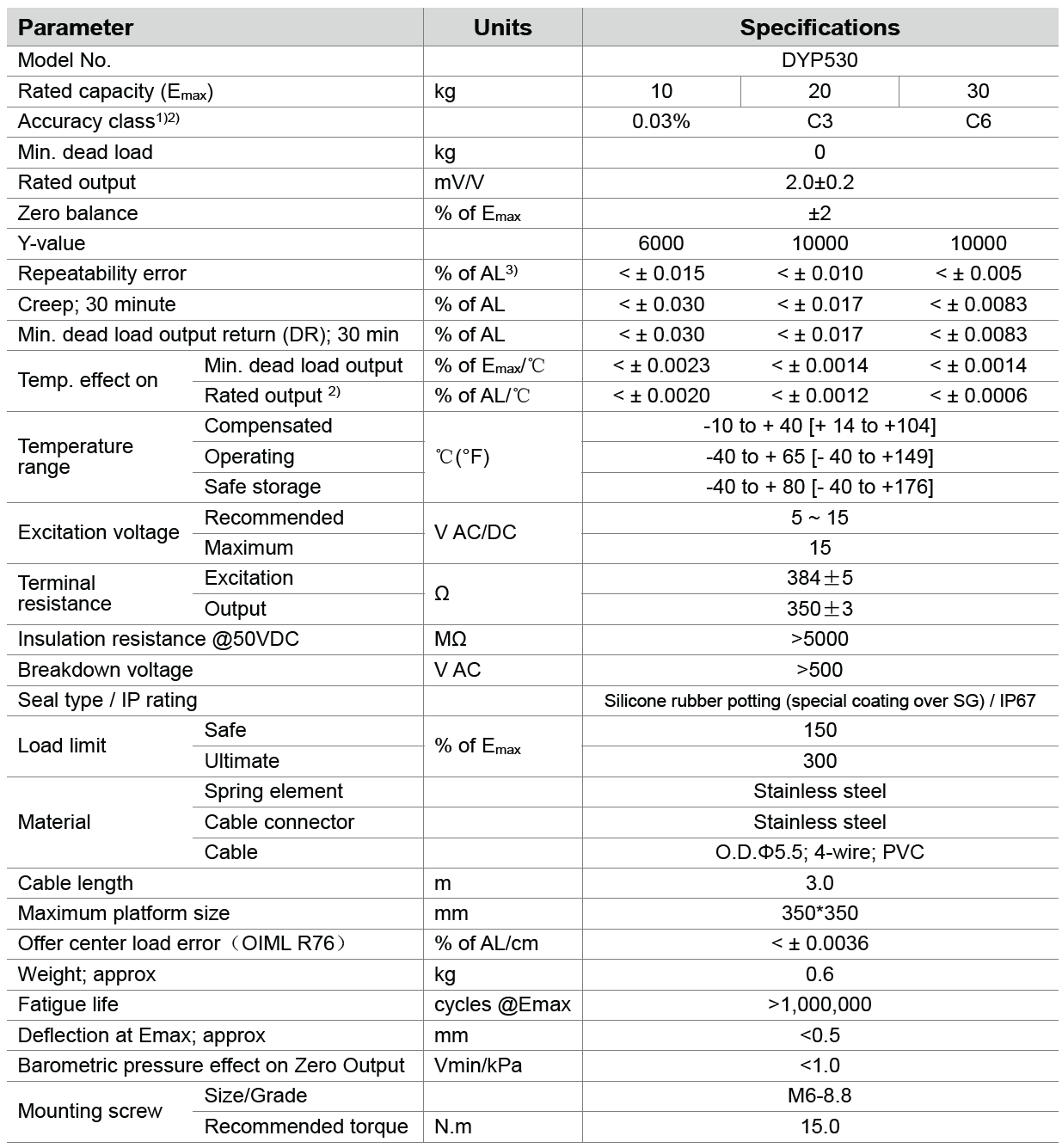

Notes:
1) Error due to combined effect of non-linearity and hysteresis.
2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
3) AL = Applied Load.
